Warn Epic Snatch Block

124,63296,45 incl. vat (21%)

  • Fantastic Epic look
  • Available in different sizes
  • Made of forged steel
  • Includes grease port
  • Check out all product of the Warn Epic serie

Description

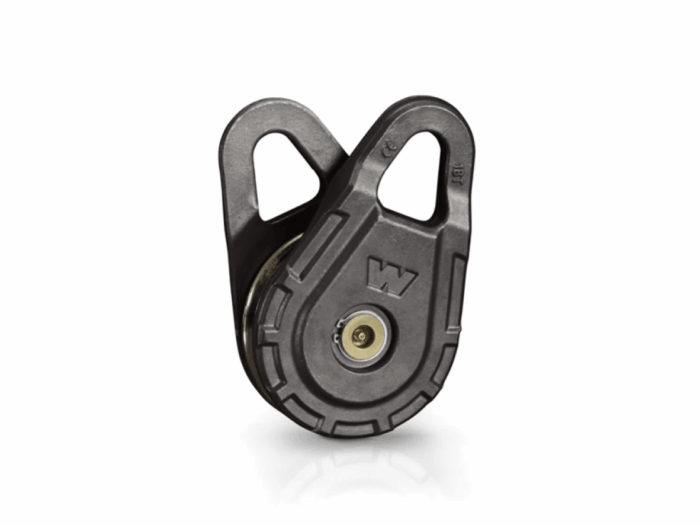

The Warn Epic Snatch block – Made of forged steel coated with a durable rust resistant “E-coat”. Used correctly, the multi-purpose Warn Epic snatch block can double the power of any winch or reverse the direction of pull without damaging the winch cable. The folding block also allows the amount of power required for a particular job to be reduced resulting in a cooler winch motor. The folding block is finished with “E-coat” and is suitable for both steel and synthetic cables. The forged steel Epic folding block is reliable, durable and ready to use.

Specifications Small Medium Large
Part number Warn 92097 Warn 92188 Warn 93195
Color Anthracite (gunmetal) Anthracite (gunmetal) Anthracite (gunmetal)
Material Forged steel with e-coat/powder coating Forged steel with e-coat/powder coating Forged steel with e-coat/powder coating
Measurements LxWxH 128mm x 77mm x 30mm 182mm x 110mm x 40mm 172mm x 108mm x 34mm
Maximum winch line ø6.4mm ø10mm  ø14mm
Maximum load 5443kg 10886kg 16329kg
Maximum winch capacity 2268kg 5443kg 8165kg
Used for Wire cable and Synthetic rope Wire cable and Synthetic rope Wire cable and Synthetic rope

The Warn Epic Snatch block – Made of forged steel coated with a durable rust resistant “E-coat”. Used correctly, the multi-purpose Warn Epic snatch block can double the power of any winch or reverse the direction of pull without damaging the winch cable. The folding block also allows the amount of power required for a particular job to be reduced resulting in a cooler winch motor. The folding block is finished with “E-coat” and is suitable for both steel and synthetic cables. The forged steel Epic folding block is reliable, durable and ready to use.

Specifications
Part number
Small – Warn 92097
Medium – Warn 92188
Large – Warn 93195
Color
Antraciet (gunmetal)
Material
Forged steel with e-coat/powder coating
Measurements LxWxH
Small – 128mm x 77mm x 30mm
Medium – 182mm x 110mm x 40mm
Large – 247mm x 154mm x 54mm
Maximum winch line
Small – ø6.4mm
Medium – ø10mm
Large – ø14mm
Maximum load
Small – 5443kg
Medium – 10886kg
Large – 16329kg
Maximum winch capacity
Small – 2268kg
Medium – 5443kg
Large – 8165kg
Used for
Wire cable and Synthetic rope

Additional information

Weight 2 kg
Dimensions 30 × 20 × 20 cm
