- Often used as ATV winch and boat trailer winch
- Wireless control optional
- With all-metal construction
- IP67 rating
- Also available the Superwinch Terra with wire cable

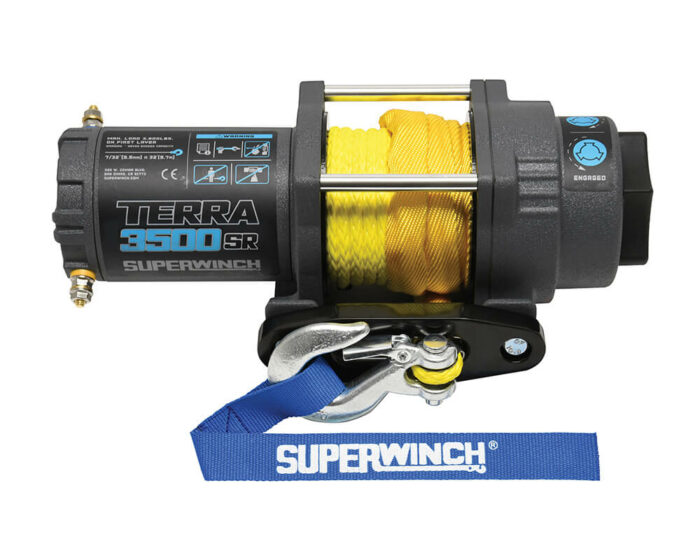

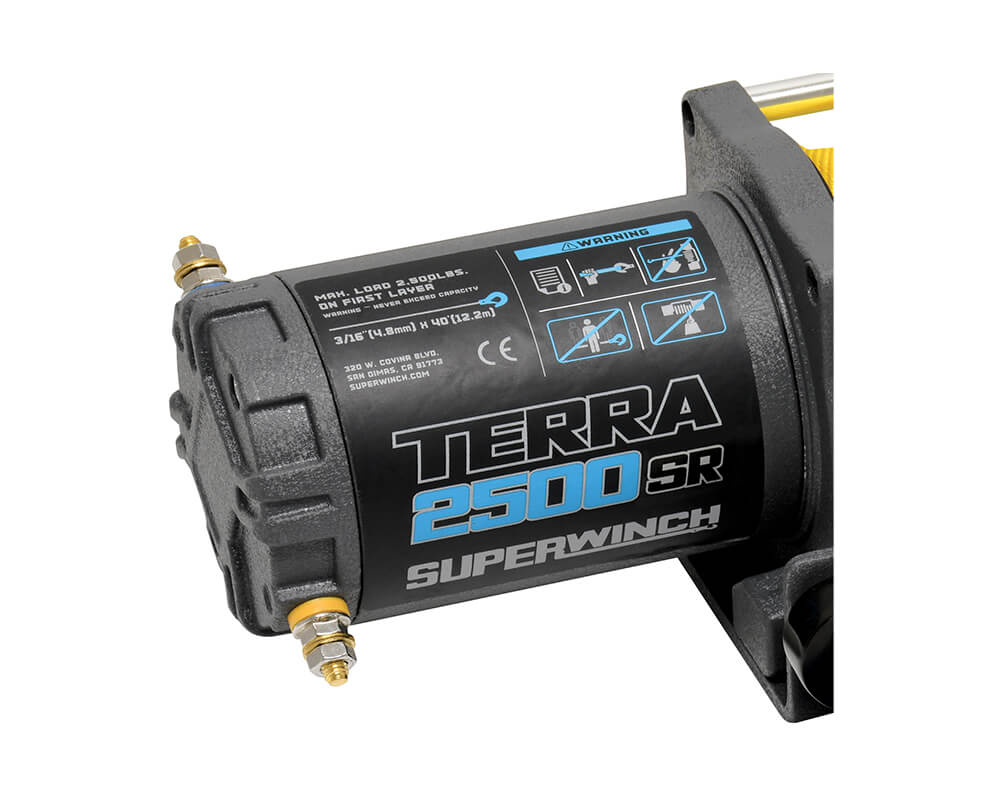

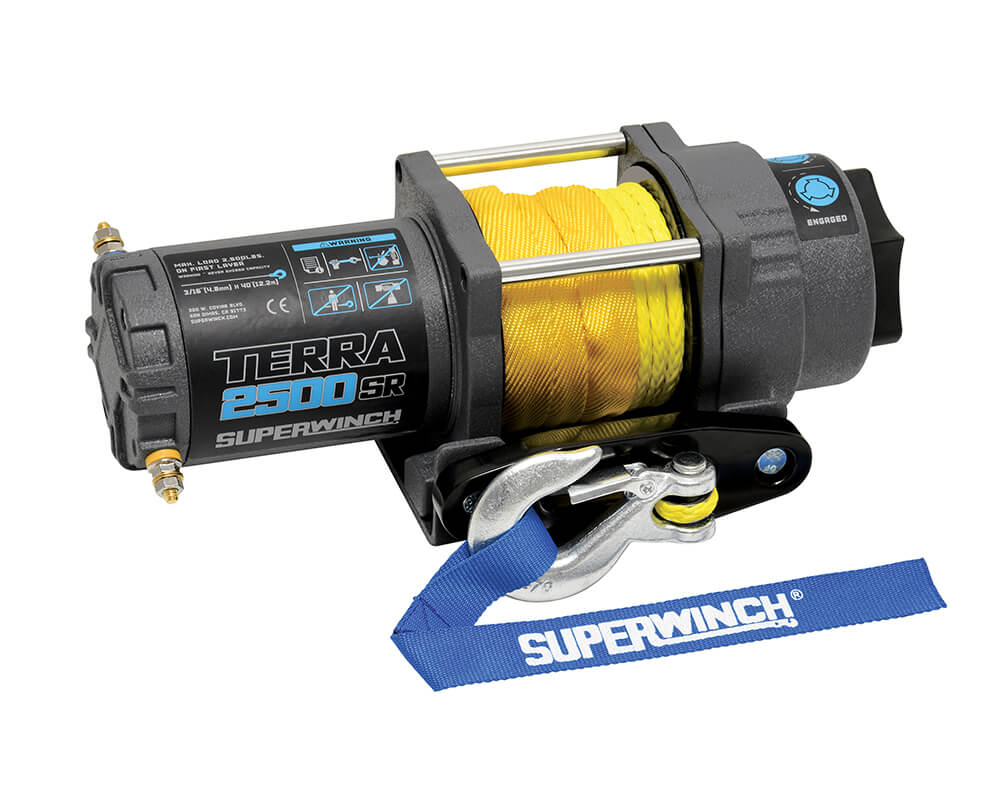

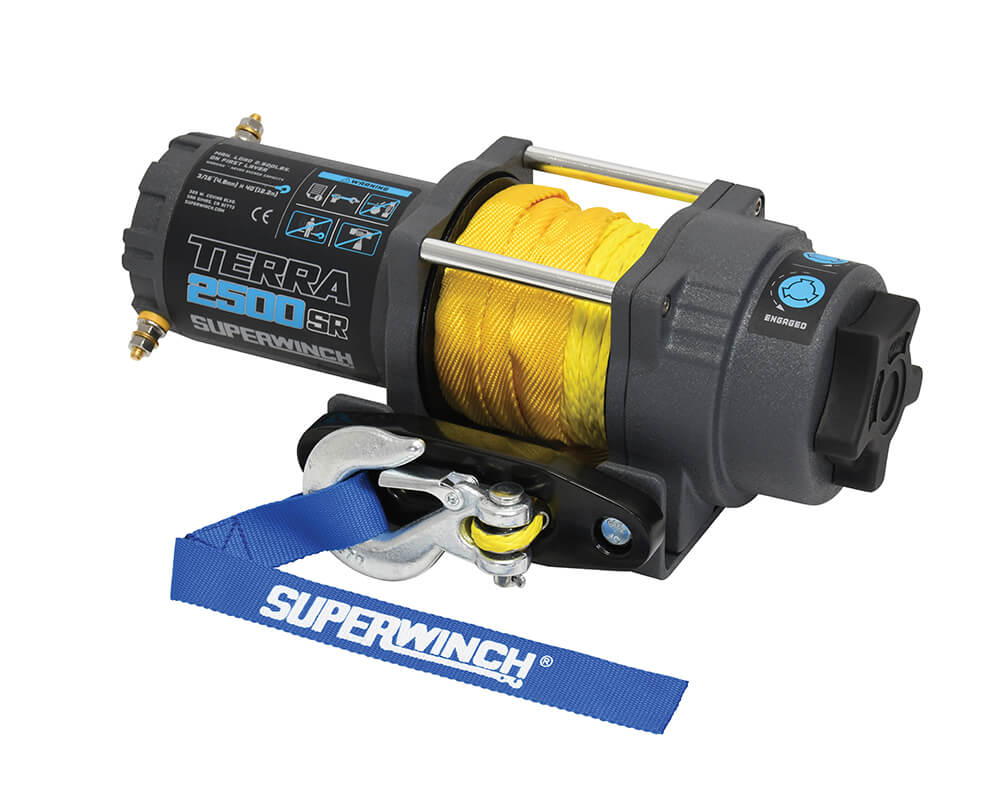

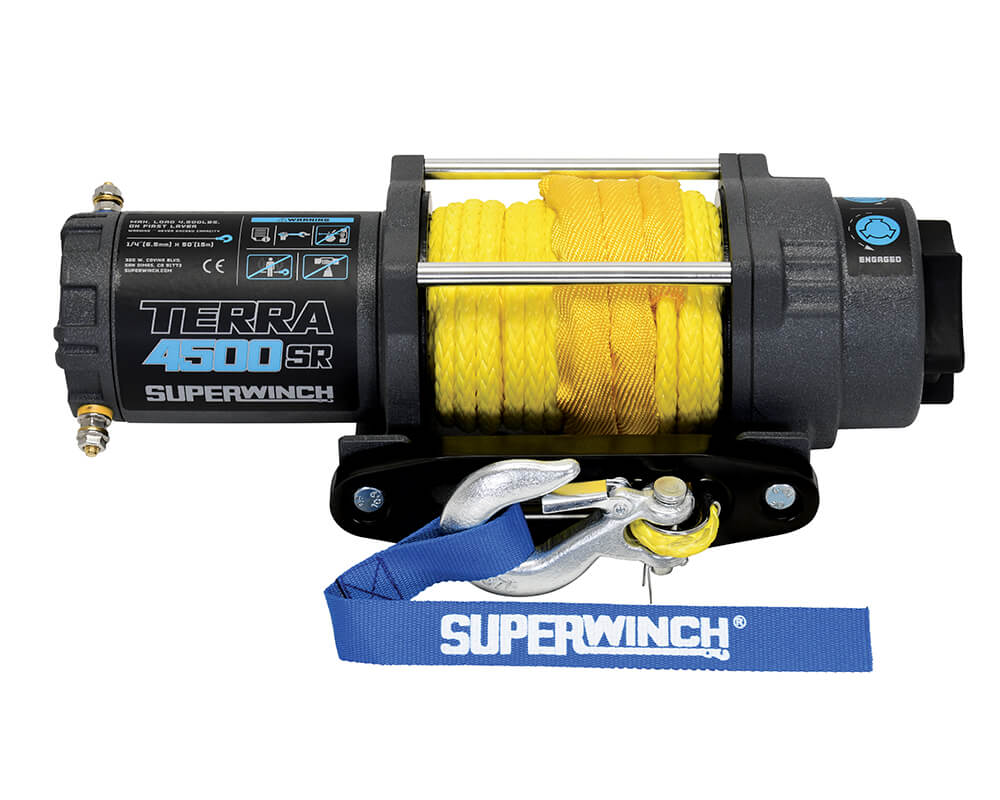

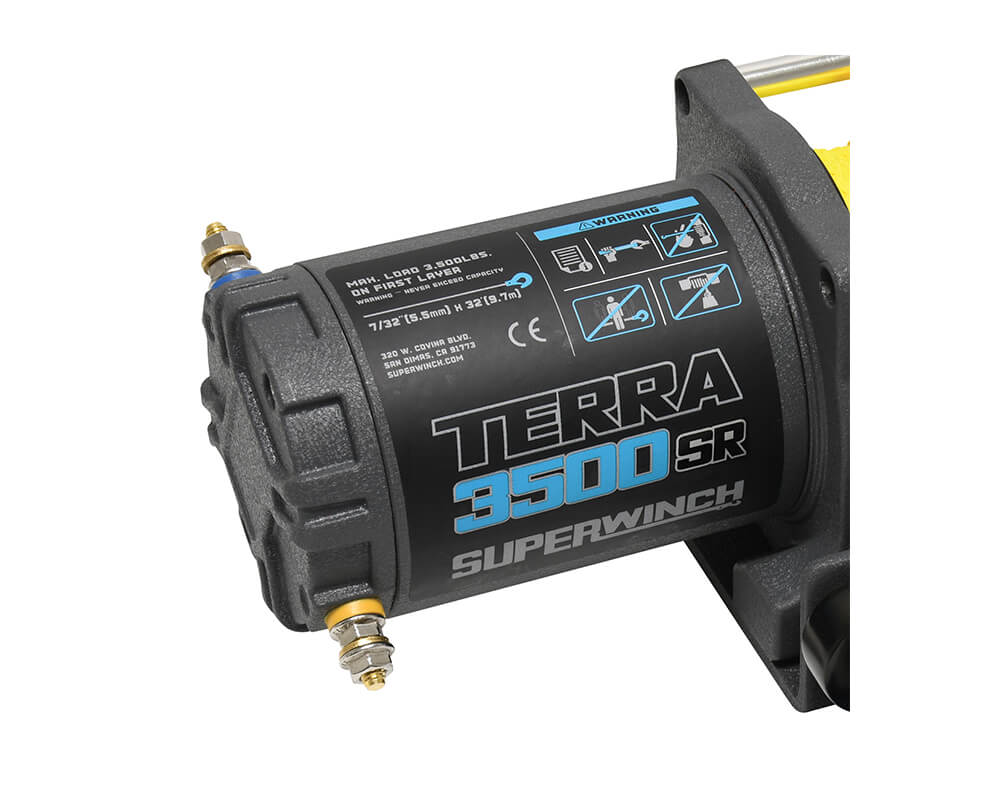

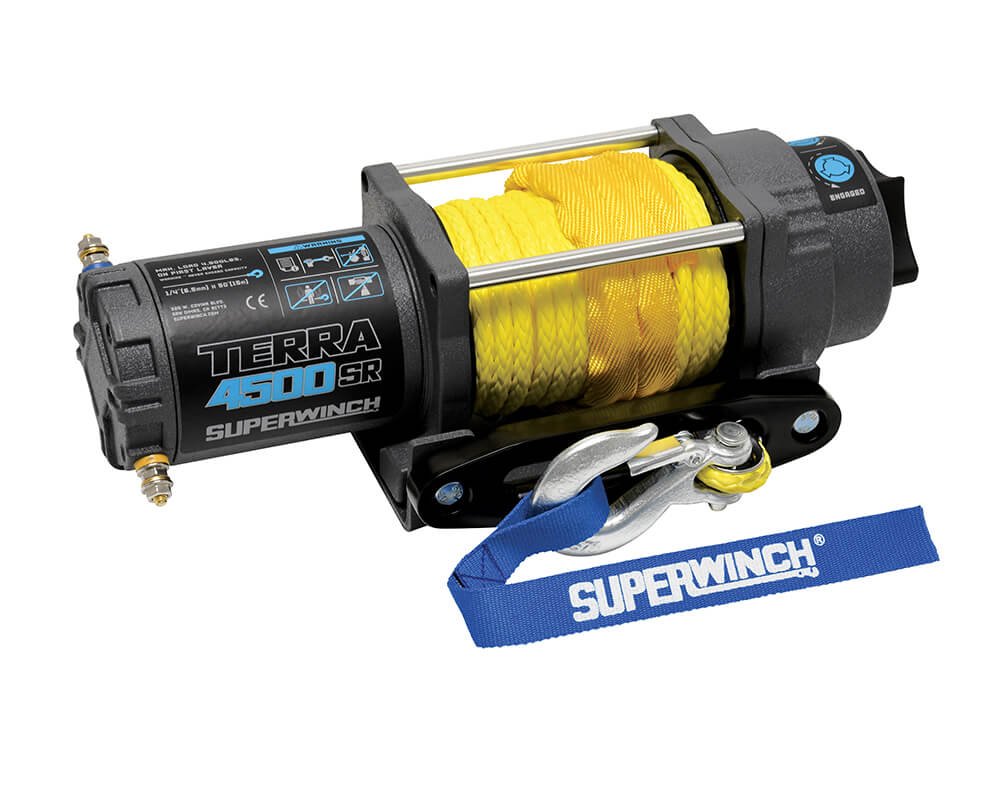

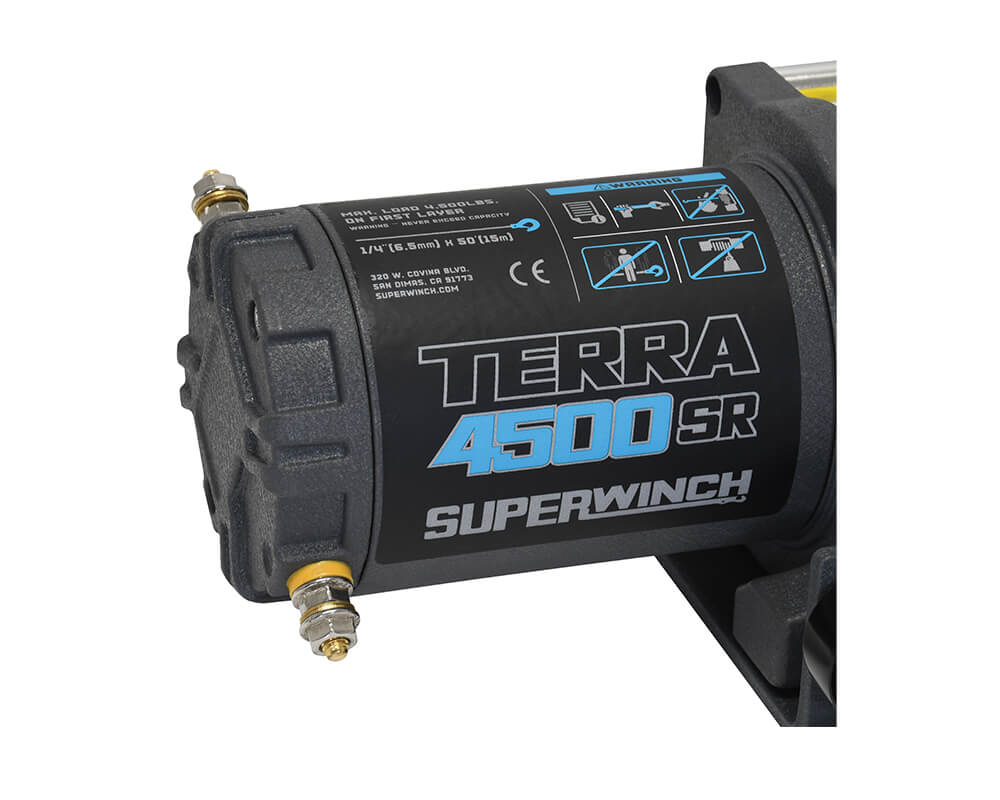

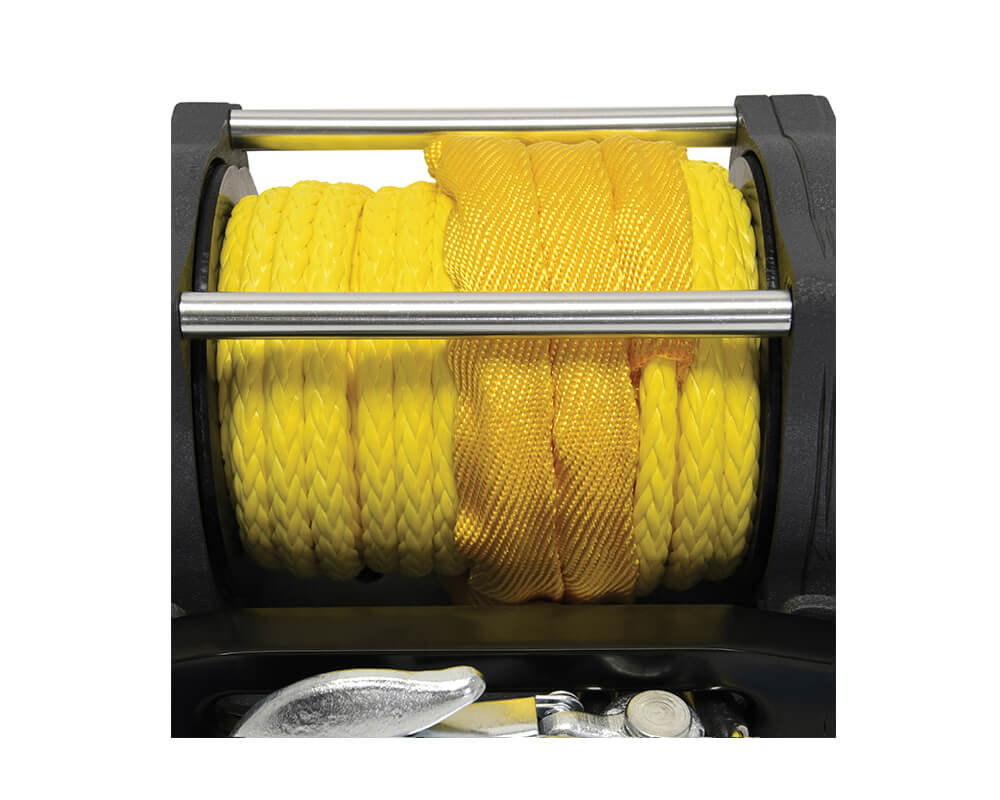

Superwinch Terra – Synthetic rope
€423,50 incl. vat (21%)
Available on backorder
Description

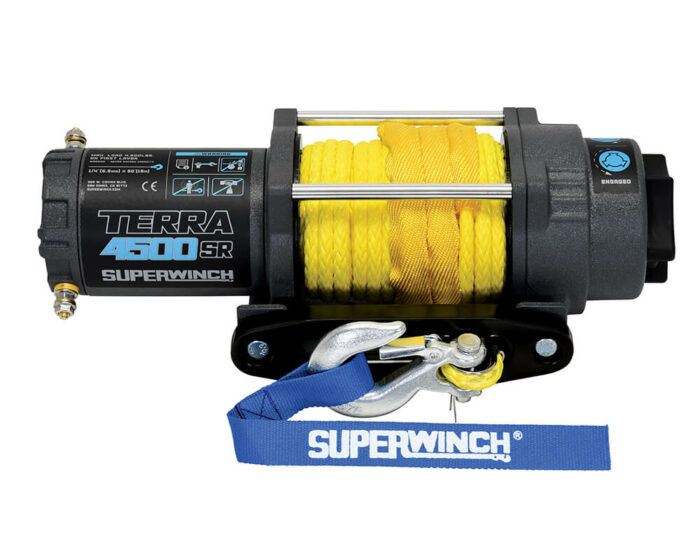

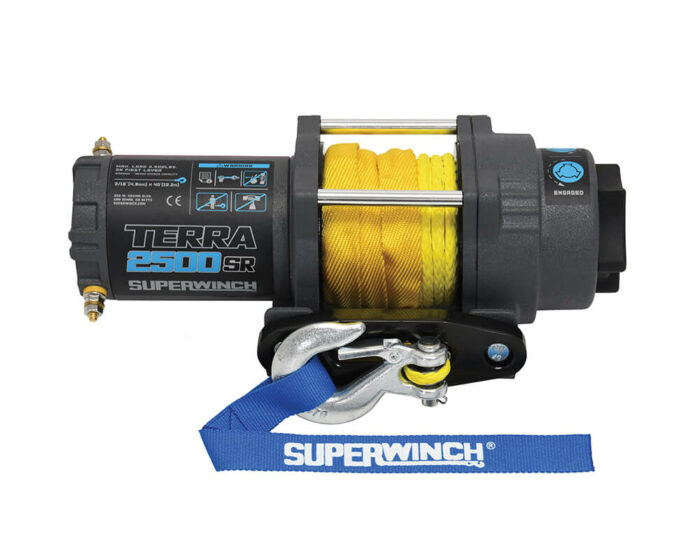

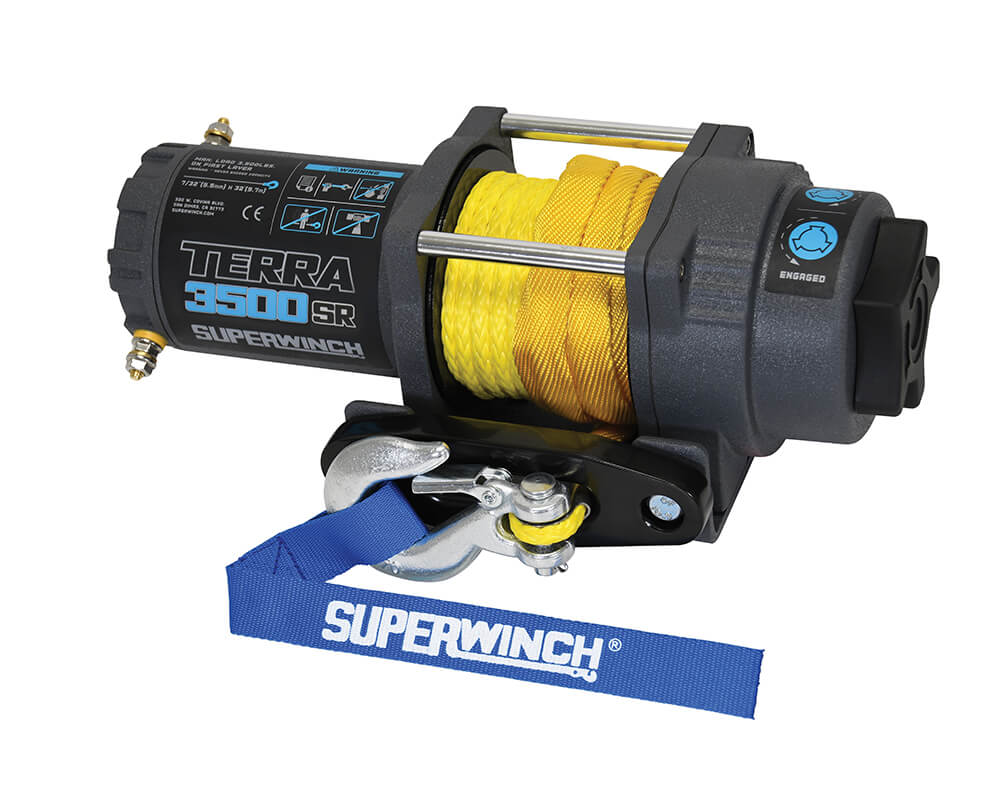

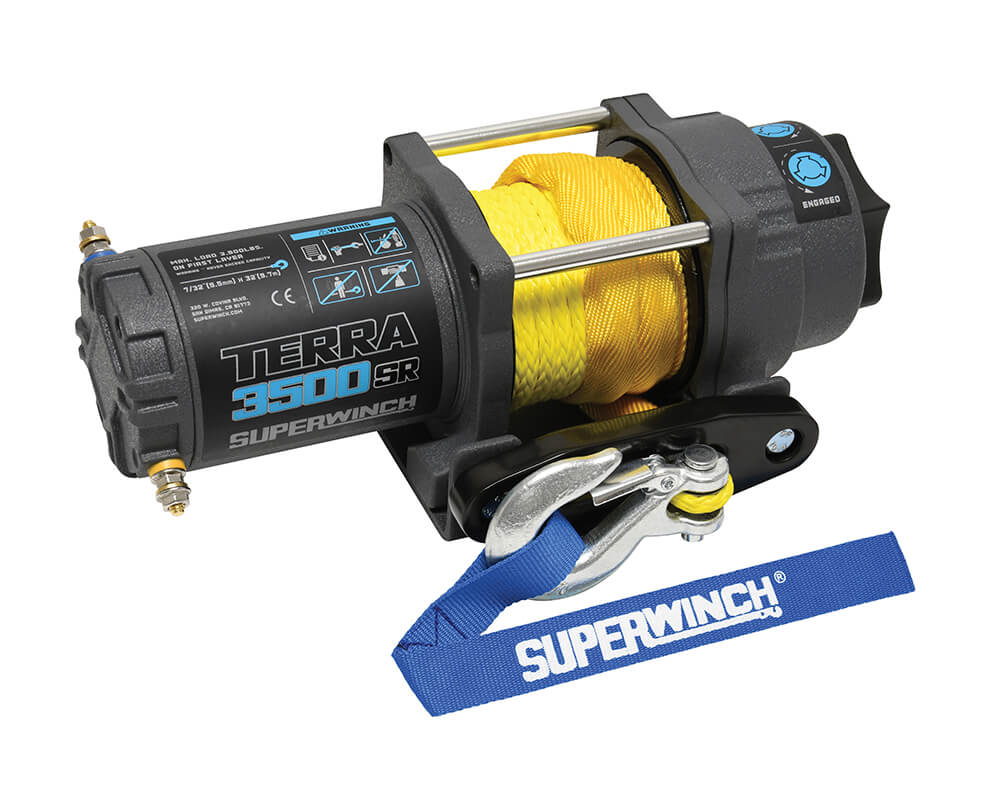

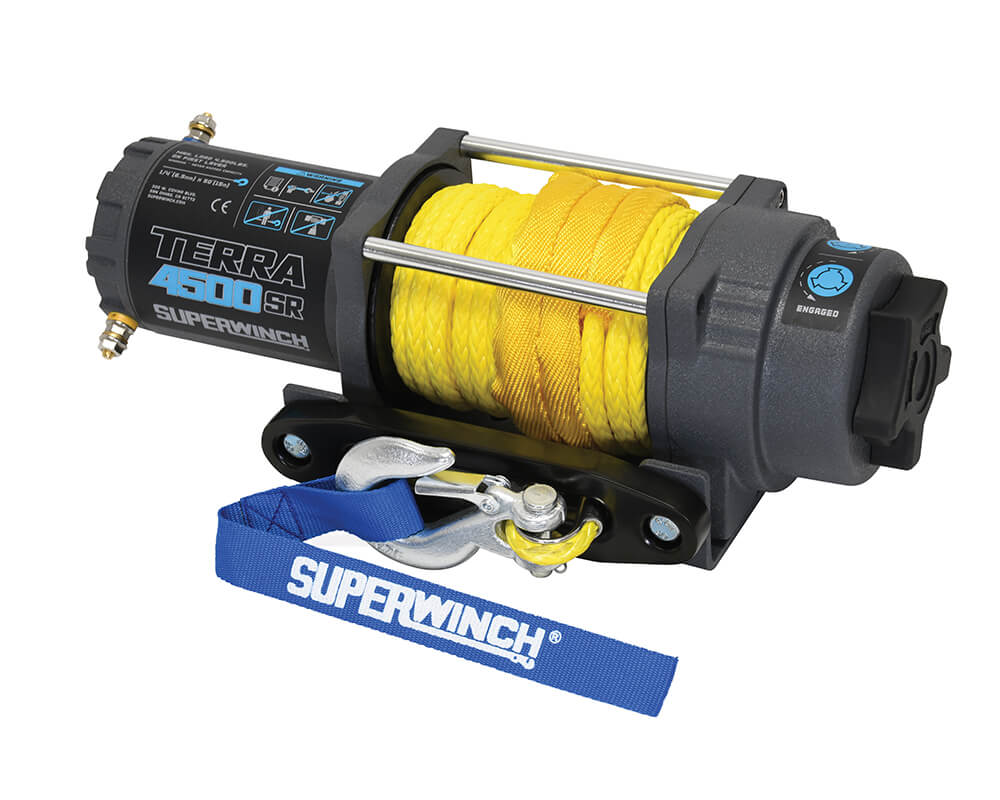

The Superwinch winch Terra – The perfect choice if you are looking for a compact and reliable electric winch.
Superwinch’s Terra Series winches are specifically designed to meet the demands of ATV and UTV enthusiasts. Available in different capacities, with a choice of steel cable or synthetic rope. This winch features a powerful motor, strong all-steel gearing and a steel drum for superior performance and durability.

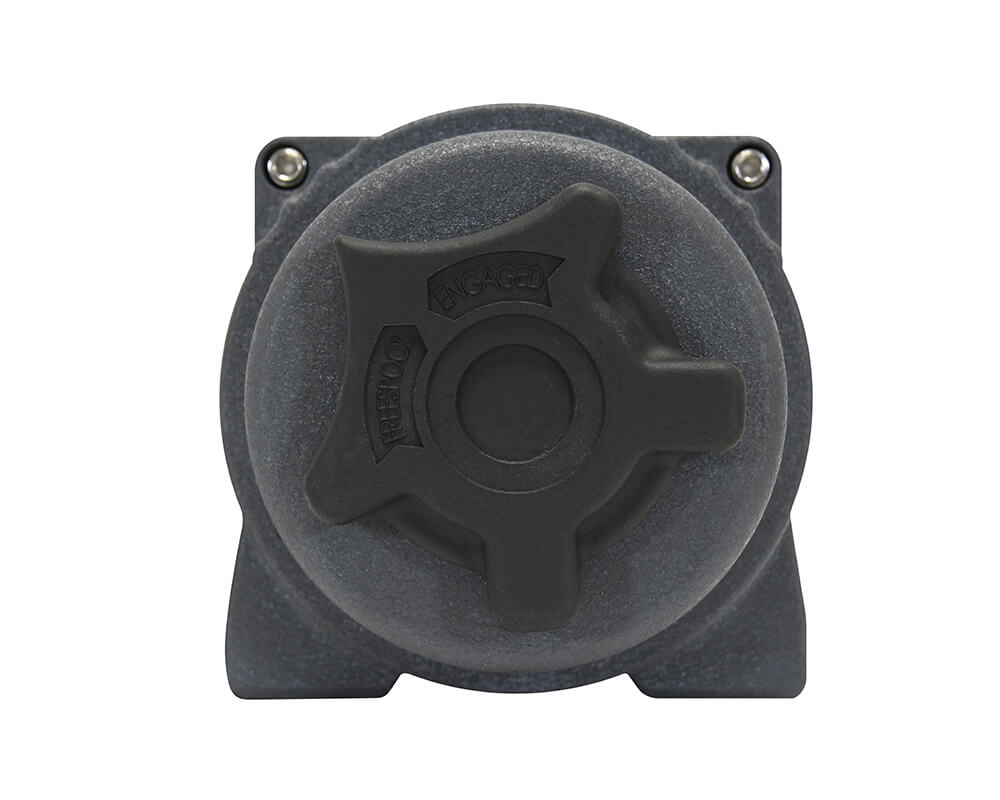

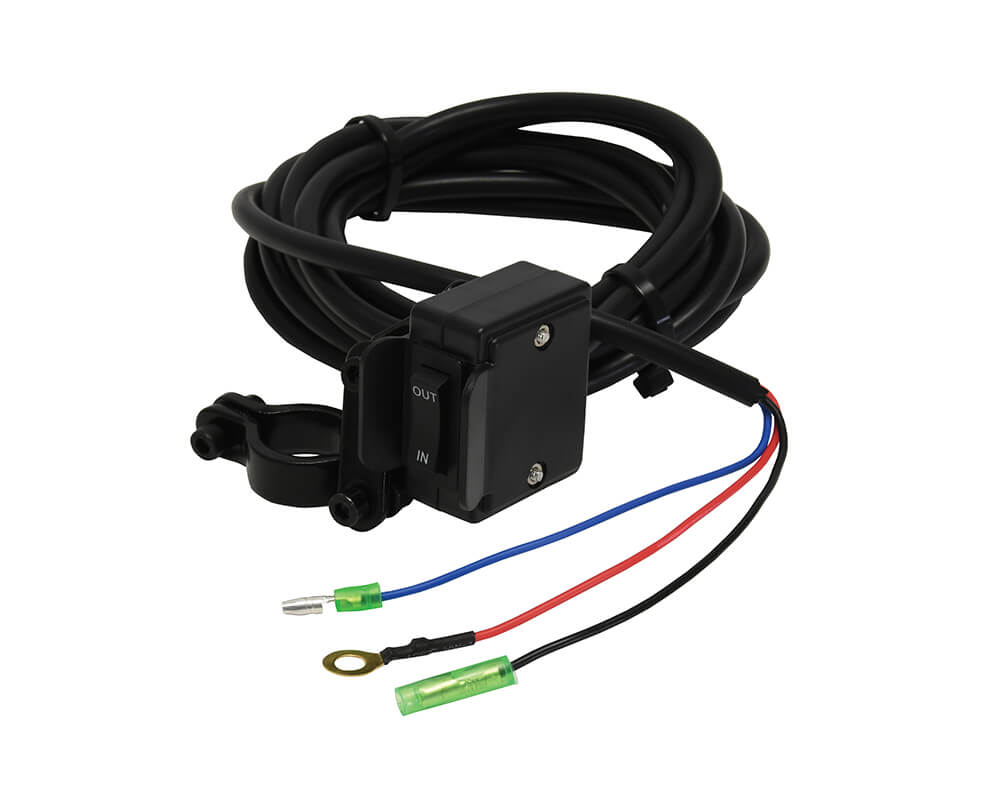

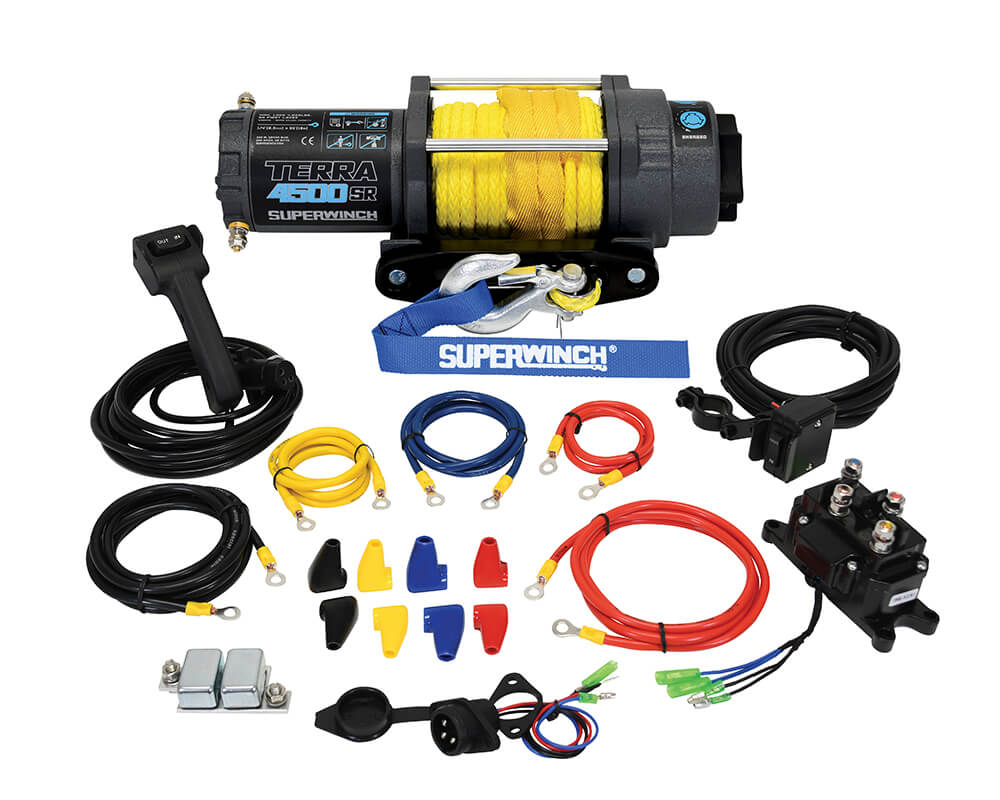

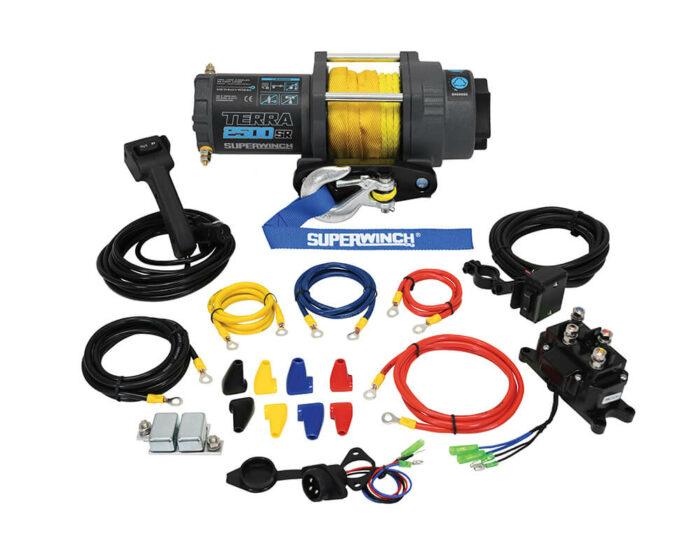

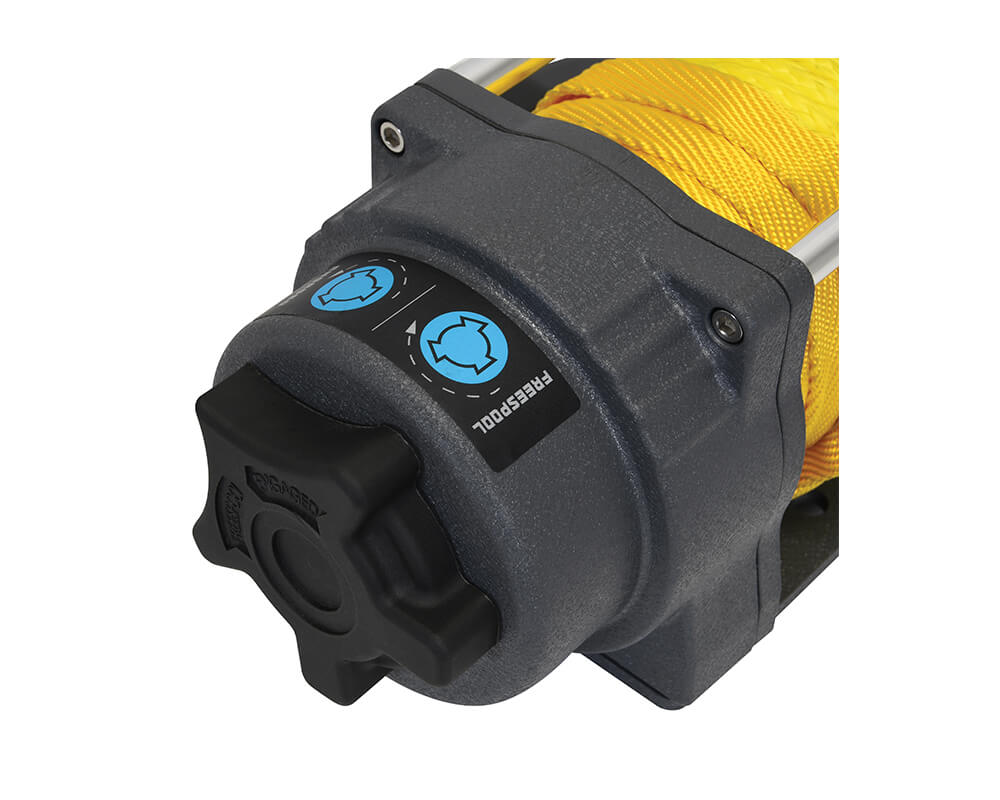

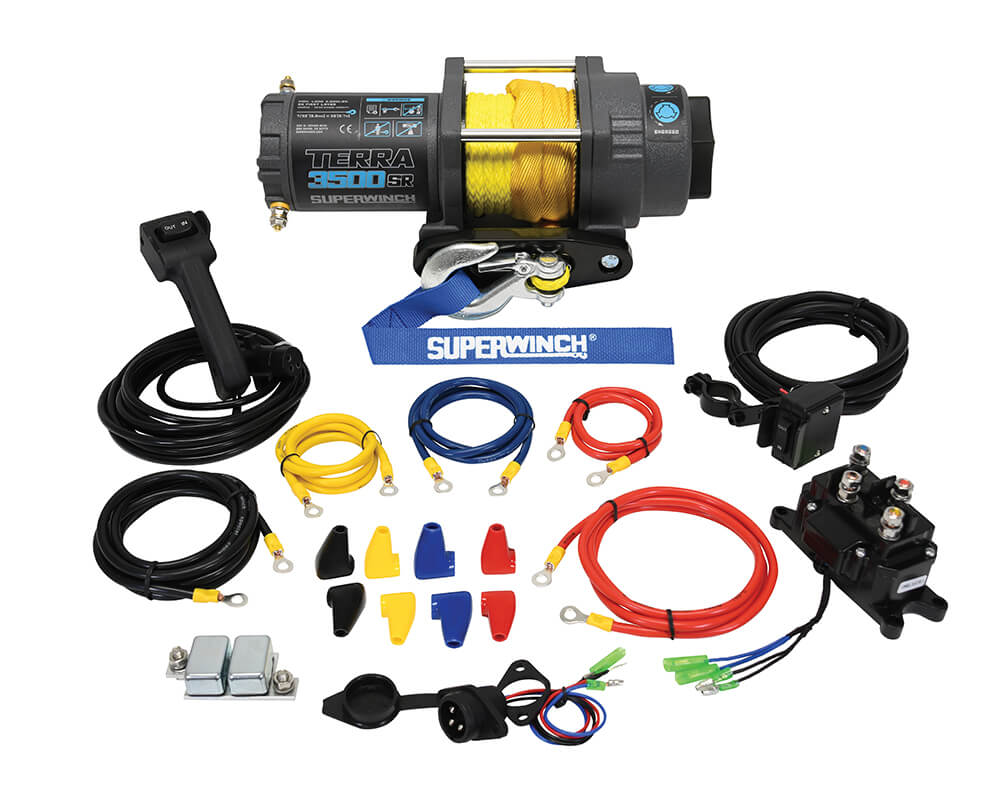

All Terra Series winches are equipped with a remote mountable control box with a sealed solenoid and circuit breaker. to ensure reliable operation. The freewheel is easily managed by an easy-to-engage ergonomic control knob. Each winch contains a wired remote control and a switch that can be mounted on the handlebar. A wireless control is optional and can be purchased separately. The Terra series winches are IP67 rated for water and dust protection.
| Specifications | Terra 25-S | Terra 35-S | Terra 45-S |
|---|---|---|---|
| Part number | Superwinch 1125270 | Superwinch 1135270 | Superwinch 1145270 |
| Rated Line Pull | 1134kg | 1588kg | 2041kg |
| Motor | 12V DC | 12V DC | 12V DC |
| Gear | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary |
| Brake | Mechanical | Mechanical | Mechanical |
| Remote | Handlebar switch and wired remote (wireless optional) | Handlebar switch and wired remote (wireless optional) | Handlebar switch and wired remote (wireless optional) |
| Rope | ø4.8mm x 12.2m | ø5.6mm x 9.8m | ø6.0mm x 15.2m |
| Fairlead | Hawse (⊗123.7mm) | Hawse (⊗123.7mm) | Hawse (⊗167.4mm) |
| Measurements LxWxH | 324mm x 114mm x 116mm | 324mm x 114mm x 116mm | 366mm x 114mm x 116mm |
| Bolt pattern LxW | 123.7mm x 76.2mm | 123.7mm x 76.2mm | 167.4mm x 76.2mm |
| Weight | 6.8kg | 8kg | 9kg |
| Line speed No load/Load | 7.5MPM / 2.1MPM | 4.9MPM / 1.8MPM | 4.9MPM / 1.2MPM |
| Amp No load/Load | 15AMP / 175AMP | 15AMP / 150AMP | 17AMP / 210AMP |
| Specifications |
| Part number |
| Terra 25-S – Superwinch 1125270 |
| Terra 35-S – Superwinch 1135270 |
| Terra 45-S – Superwinch 1145270 |
| Rated Line Pull |
| Terra 25-S – 1134kg |
| Terra 35-S – 1588kg |
| Terra 45-S – 2041kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage Planetary |
| Brake |
| Mechanical |
| Remote |
| Handlebar switch and wired remote (wireless optional) |
| Rope |
| Terra 25-S – ø4.8mm x 12.2m |
| Terra 35-S – ø5.6mm x 9.8m |
| Terra 45-S – ø6.0mm x 15.2m |
| Fairlead |
| Terra 25-S/35-S – Hawse (⊗123.7mm) |
| Terra 45-S – Hawse (⊗167.4mm) |
| Measurements LxWxH |
| Terra 25-S/35-S – 324mm x 114mm x 116mm |
| Terra 45-S – 366mm x 114mm x 116mm |
| Bolt pattern LxW |
| Terra 25-S/35-S – 123.7mm x 76.2mm |
| Terra 45-S – 167.4mm x 76.2mm |
| Weight |
| Terra 25-S – 6.8kg |
| Terra 35-S – 8kg |
| Terra 45-S – 9kg |
| Line speed No load/Load |
| Terra 25-S – 7.5MPM / 2.1MPM |
| Terra 35-S – 4.9MPM / 1.8MPM |
| Terra 45-S – 4.9MPM / 1.2MPM |
| Amps No load/Load |
| Terra 25-S – 15AMP / 175AMP |
| Terra 35-S – 15AMP / 150AMP |
| Terra 45-S – 17AMP / 210AMP |
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 30 × 20 × 20 cm |
