Superwinch Tiger Shark – Wire cable

Price range: €0,00 through €1.341,08 incl. vat (21%)

Available on backorder

Description

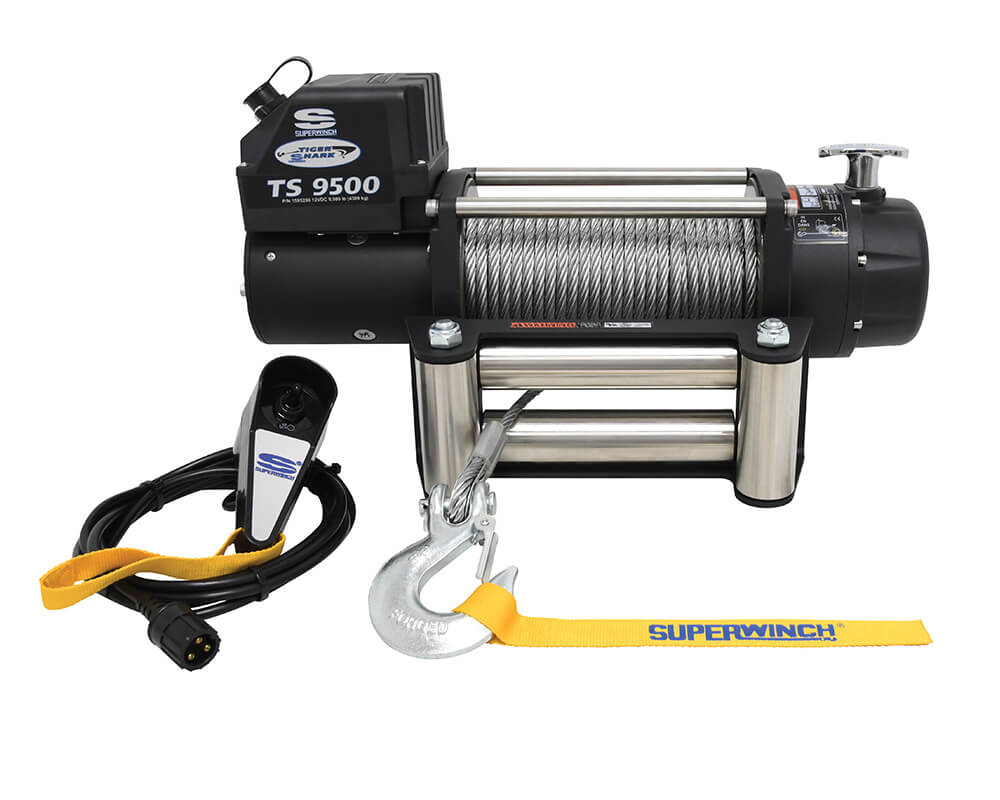

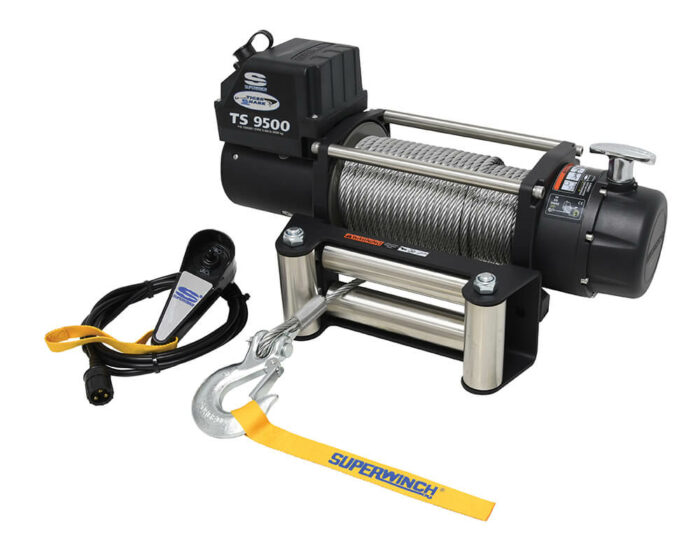

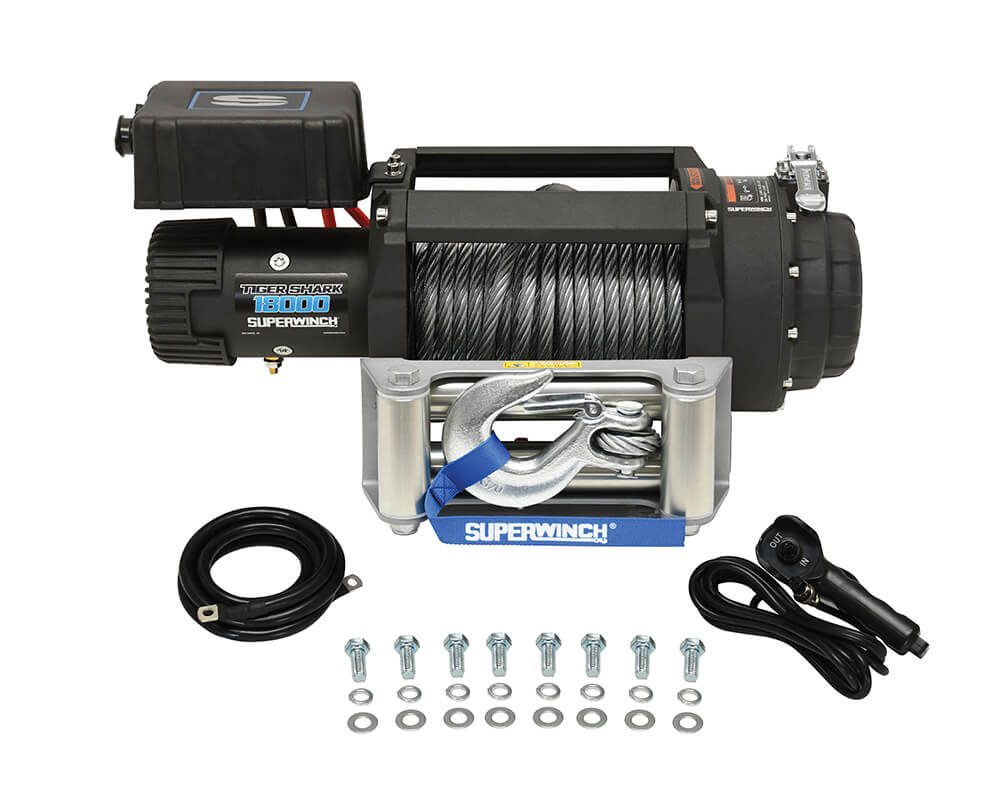

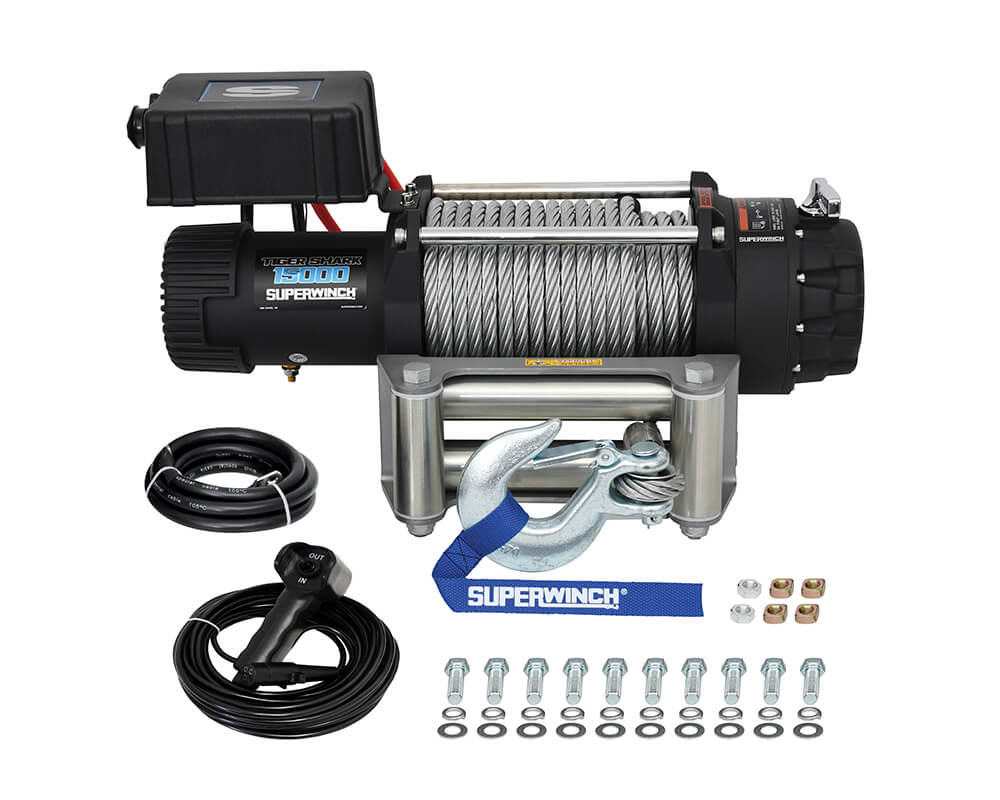

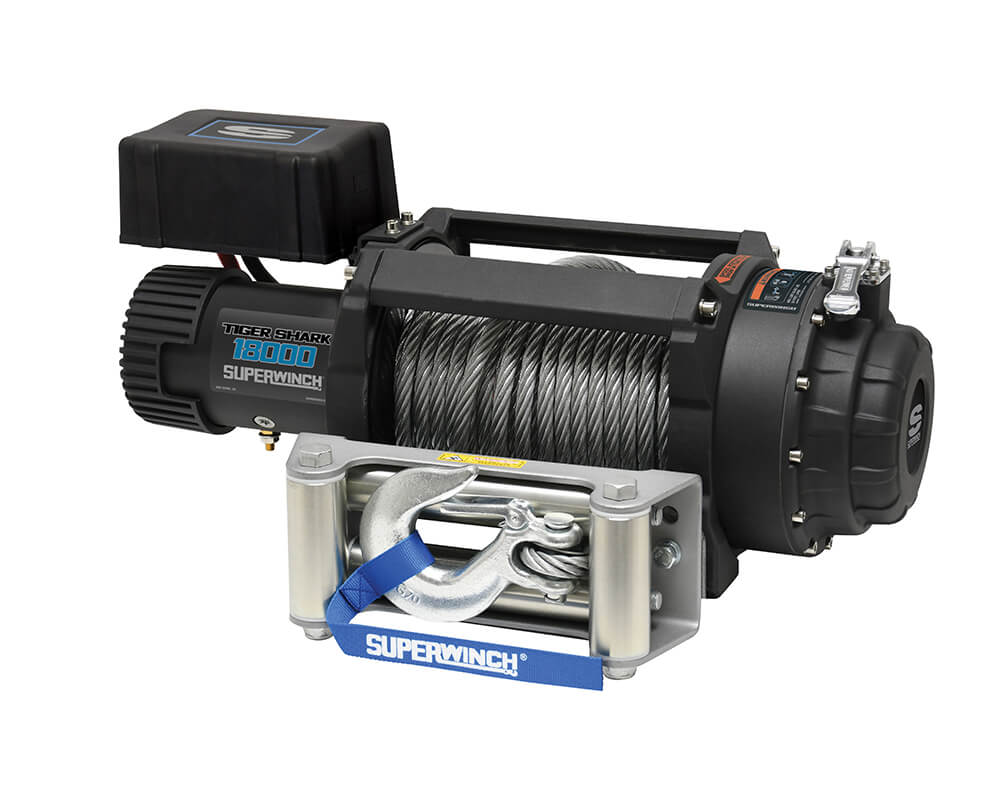

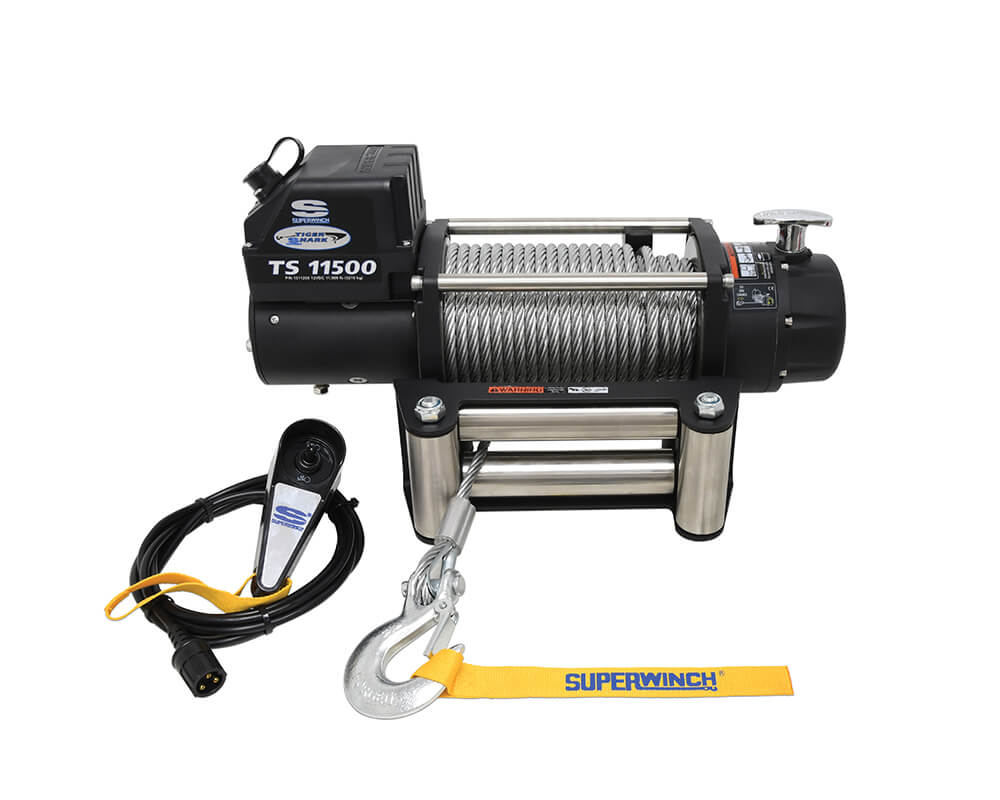

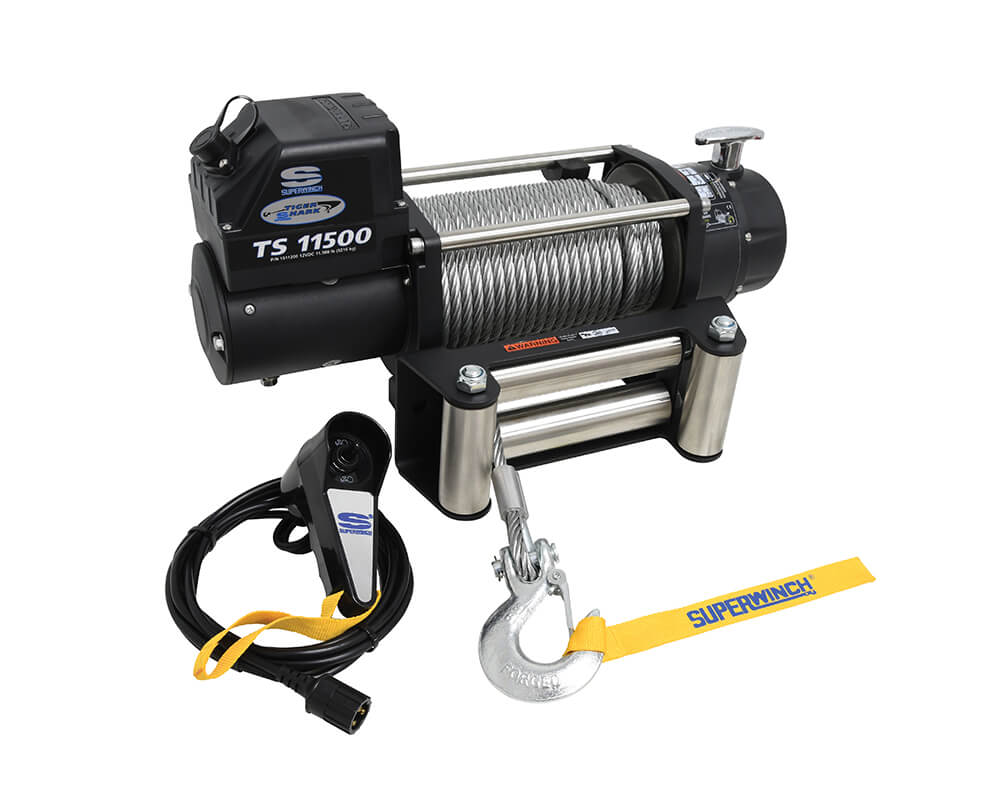

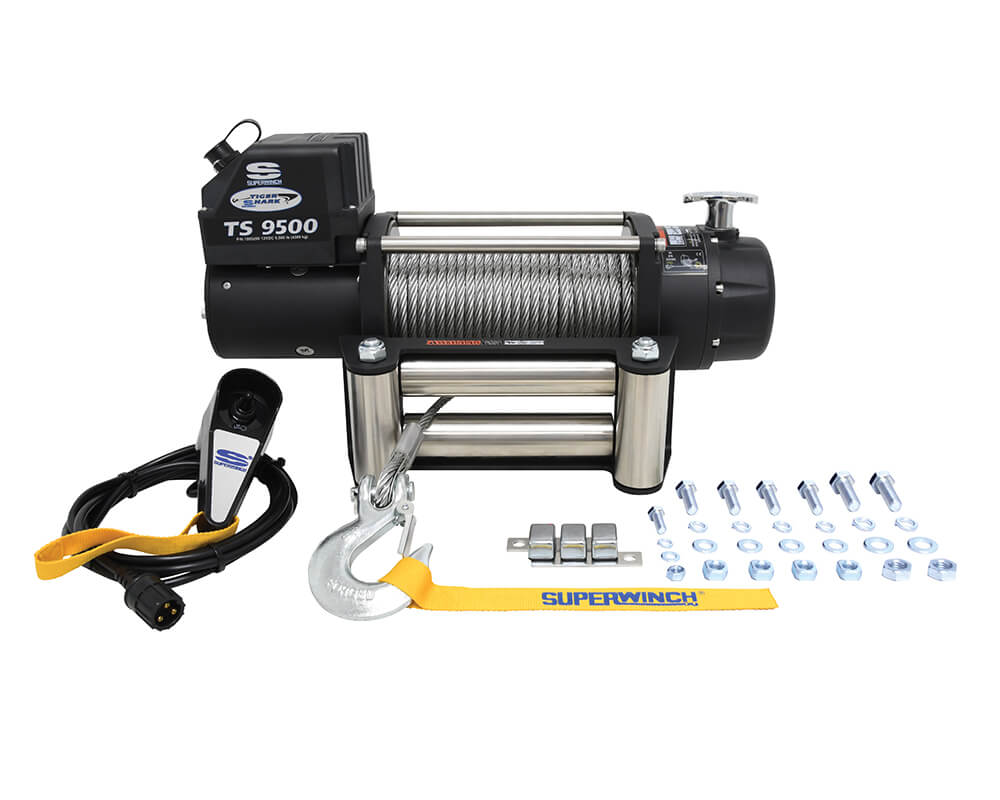

The Superwinch winch Tiger Shark – One of Superwinch’s most popular winches.

From powerful motors, strong gears and durable stainless steel components. This electric winch is available with steel cable and synthetic winch rope. The solenoidbox can easily be relocated to a position that meets your demands. The hanheld remote is included with this winch. A wireless remote can be purchased separately.

Specifications TS 9500 TS 11500 TS 15000 TS 18000
Part number Superwinch 1595200 Superwinch 1511200 Superwinch 1515000 Superwinch 1518000
Rated Line Pull 4309kg 5216kg 6804kg 8165kg
Motor 12V DC 12V DC 12V DC 12V DC
Gear 3-Stage Planetary 3-Stage Planetary 3-Stage Planetary 3-Stage Planetary
Brake Mechanical Mechanical Conical Conical
Remote Wired (wireless optional) Wired (wireless optional) Wired (wireless optional) Wired (wireless optional)
Wire cable ø8.3mm x 29m ø9.5mm x 25.6m ø11.5mm x 25m ø11.5mm x 26m
Fairlead Roller (⊗254mm) Roller (⊗254mm) Roller (⊗254mm) Roller (⊗254mm)
Measurements LxWxH 615.2mm x 157.5mm x 278.2mm 615.2mm x 157.5mm x 278.2mm 610mm x 249mm x 198mm 618mm x 290mm x 216mm
Bolt pattern LxW 254mm x 114.3mm 254mm x 114.3mm 254mm x 114.3mm 254mm x 114.3mm
Weight 41kg 42kg 50kg 60kg
Line Speed No load/Load 5.7MPM / 1.2MPM 5.7MPM / 0.6MPM 6.0MPM / 0.9MPM 19.7MPM / 3.8MPM
Amps No load/Load 80AMP / 340AMP 80AMP / 410AMP 70AMP / 410AMP 70AMP / 440AMP

Specifications
Part number

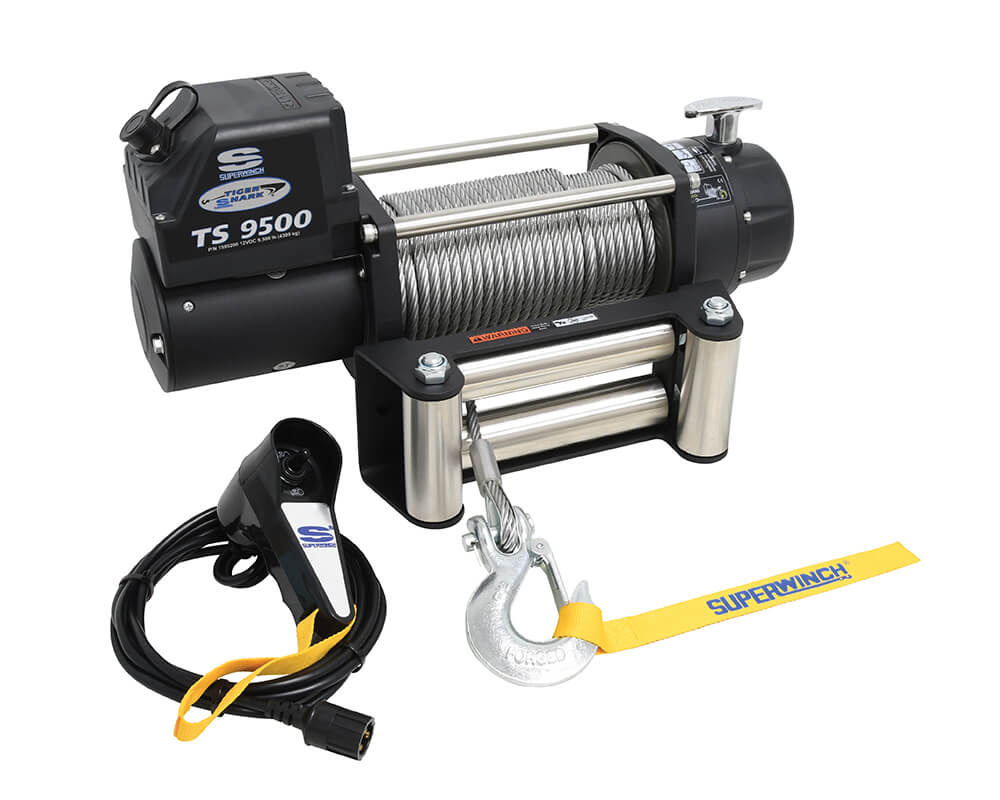

TS 9500 – Superwinch 1595200

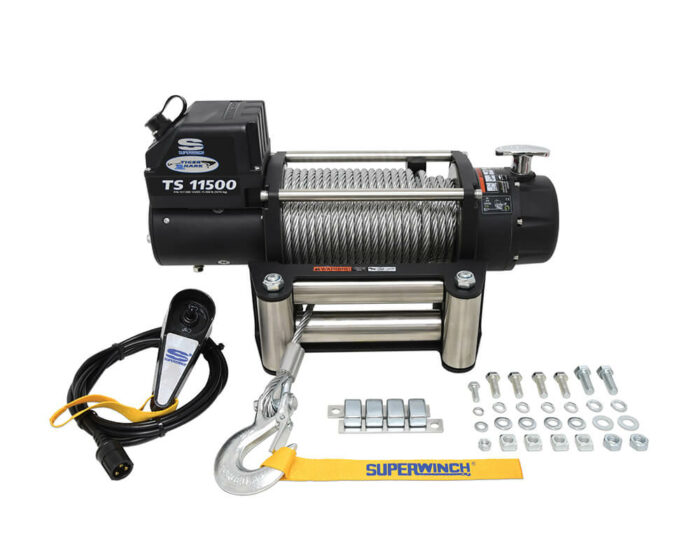

TS 11500 – Superwinch 1511200

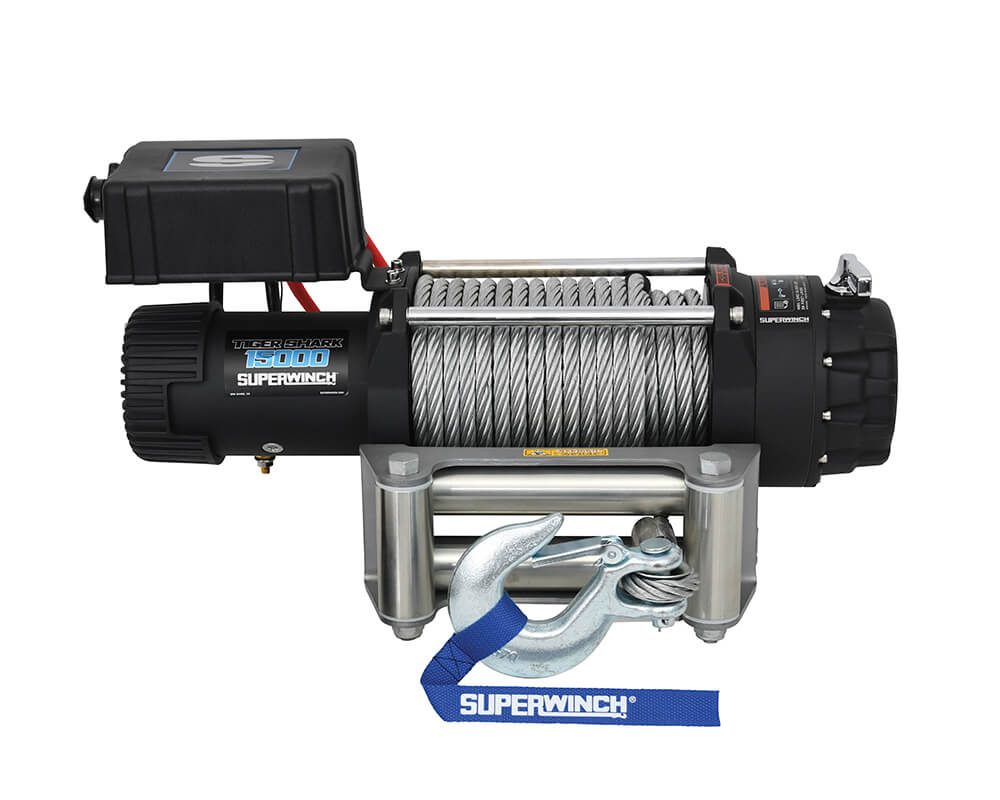

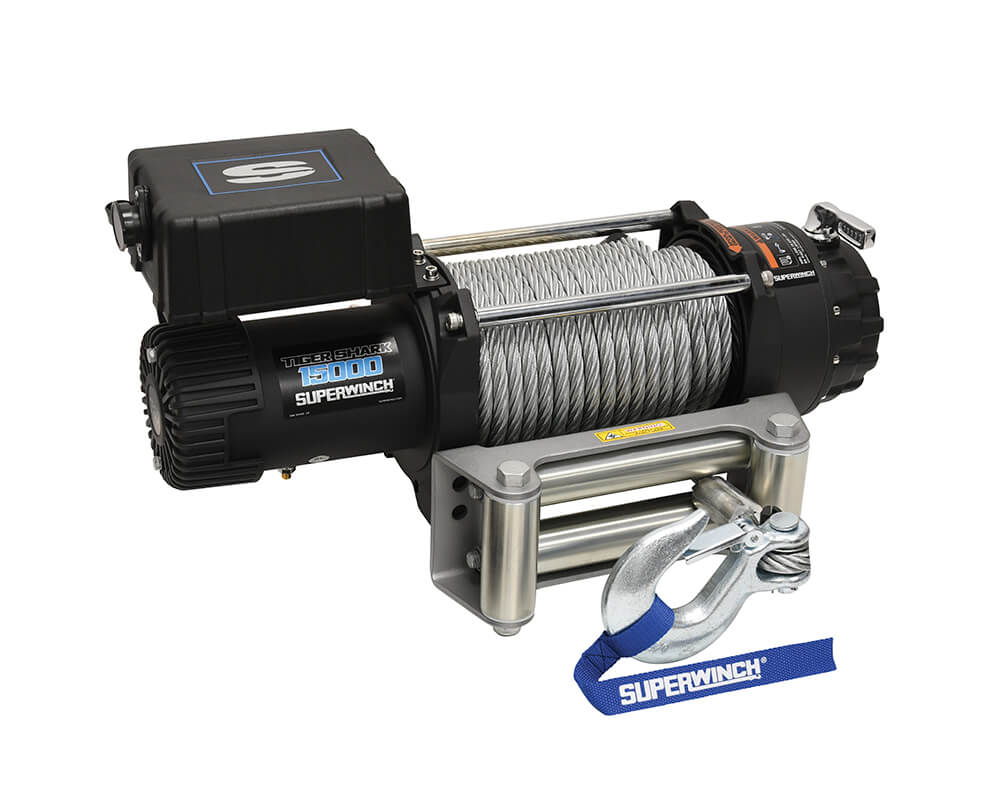

TS 15000 – Superwinch 1515000

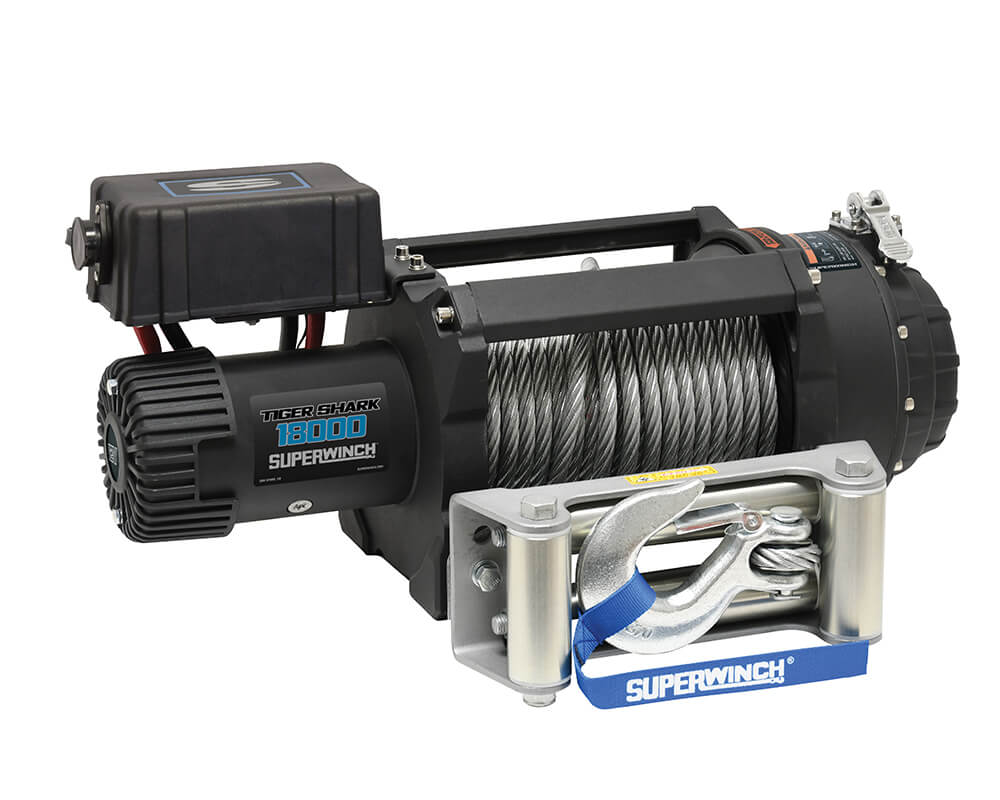

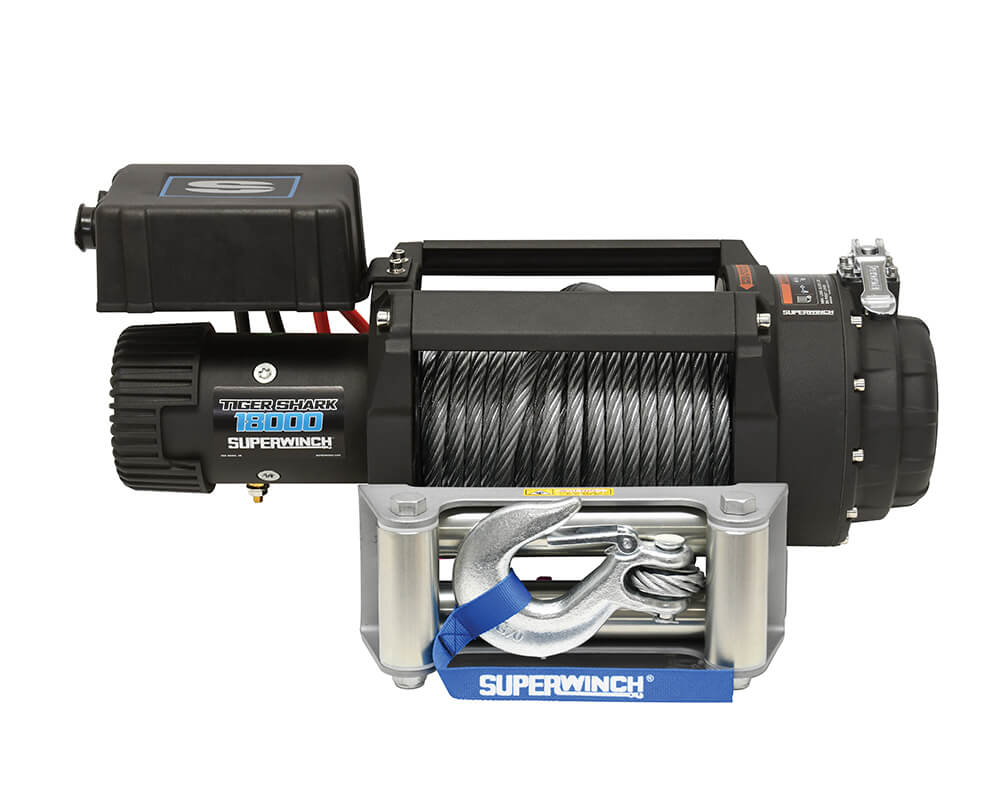

TS 18000 – Superwinch 1518000
Rated Line Pull
TS 9500 – 4309kg
TS 11500 – 5216kg
TS 15000 – 6804kg
TS 18000 – 8165kg
Motor
12v DC
Gear
3-Stage Planetary
Brake
TS 9500/11500 – Mechanical
TS 15000/18000 – Conical
Remote
Wired (wireless optional)
Wire cable
TS 9500 – ø8.3mm x 29m
TS 11500 – ø9.5mm x 25.6m
TS 15000 – ø11.5mm x 25m
TS 18000 – ø11.5mm x 26m
Fairlead
Roller (⊗254mm)
Measurements LxWxH
TS 9500/11500 – 615.2mm x 157.5mm x 278.2mm
TS 15000 – 610mm x 249mm x 198mm
TS 18000 – 618mm x 290mm x 216mm
Bolt pattern LxW
254mm x 114.3mm
Weight
TS 9500/11500 – 26.7kg
TS 15000 – 35kg
TS 18000 – 37kg
Line Speed No load/Load
TS 9500 – 5.7MPM / 1.2MPM
TS 11500 – 5.7MPM / 0.6MPM
TS 15000 – 6.0MPM / 0.9MPM
TS 18000 – 19.7MPM / 3.8MPM
Amps No load/Load
TS 9500 – 80AMP / 340AMP
TS 11500 – 80AMP / 410AMP
TS 15000 – 70AMP / 410AMP
TS 18000 –  70AMP / 440AMP

Additional information

Weight 60 kg
Dimensions 60 × 40 × 40 cm
