- Often used as Offroad winch and (boat) trailer winch
- Wireless control can be ordered
- Features a black finish
- Heat resistant first layer
- Also available the Superwinch Tiger Shark with steel cable

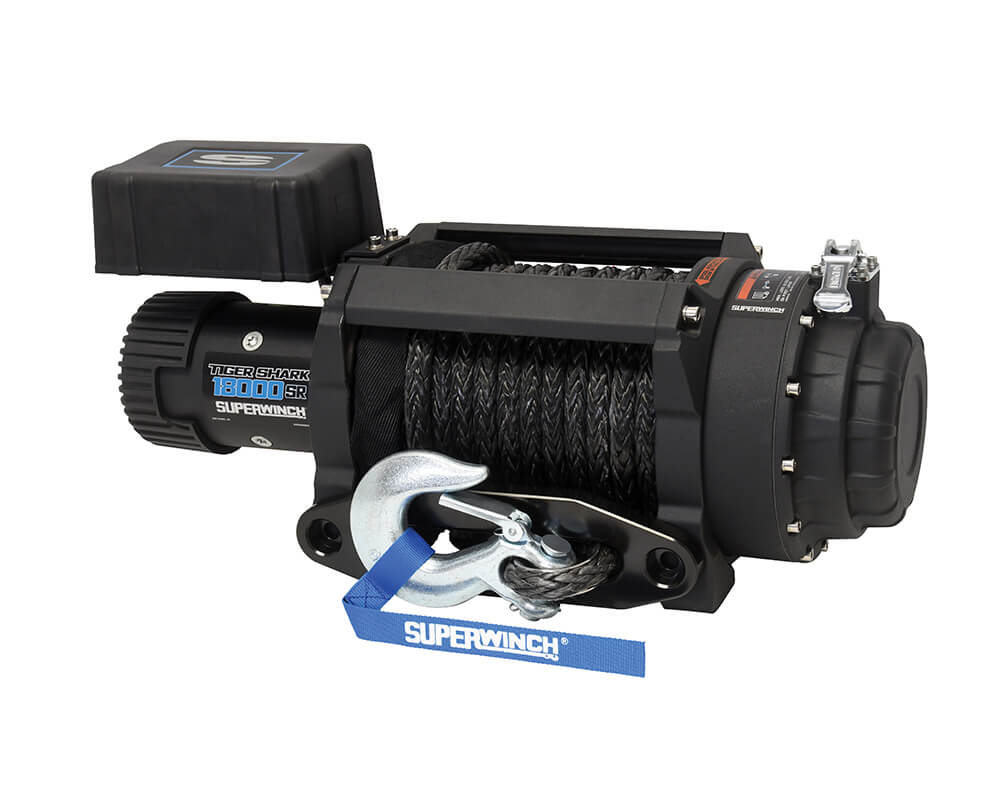

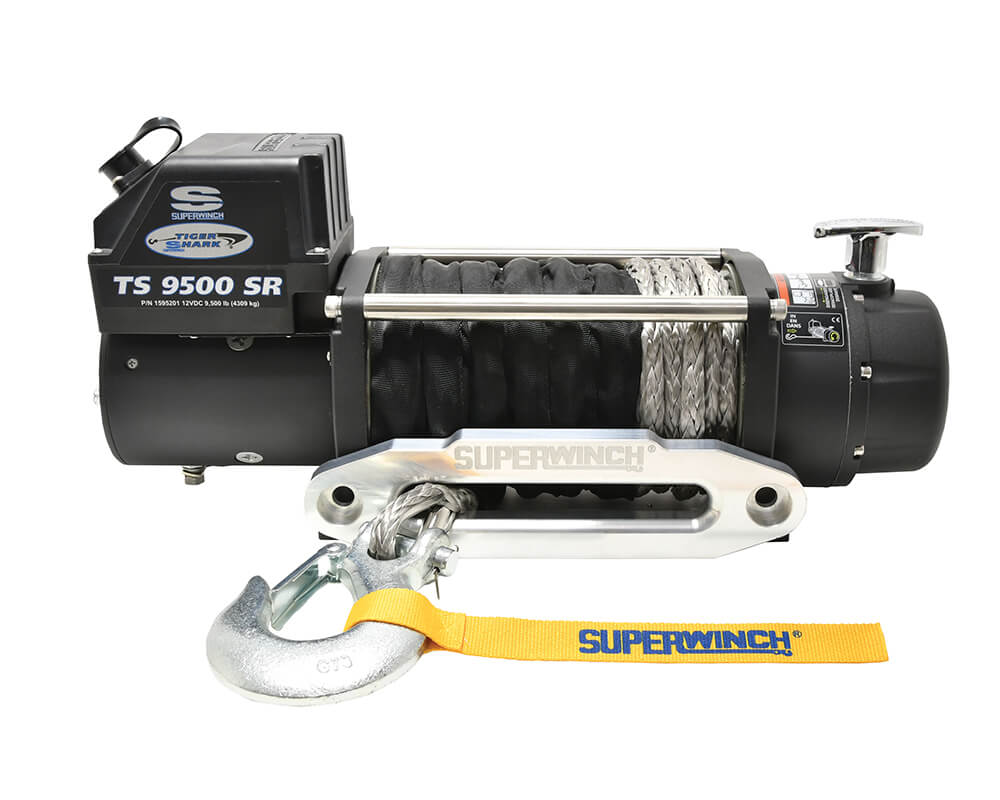

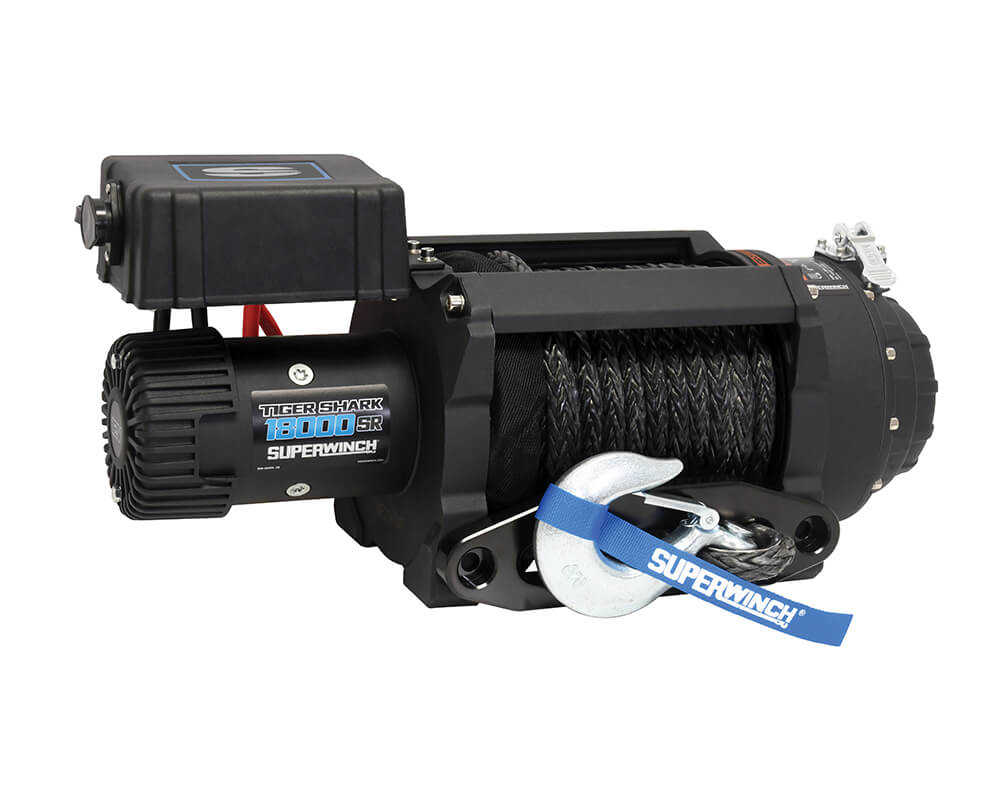

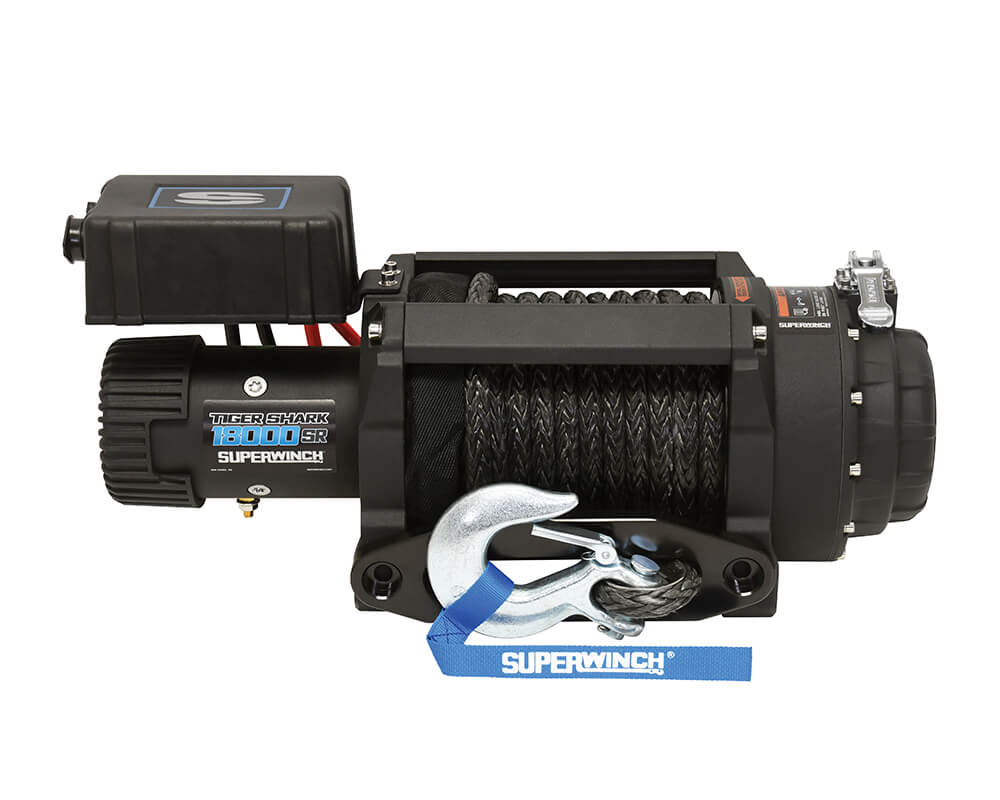

Superwinch Tiger Shark – Synthetic rope
Price range: €0,00 through €1.508,47 incl. vat (21%)
In stock
Description
The Superwinch winch Tiger Shark – One of Superwinch’s most popular winches.

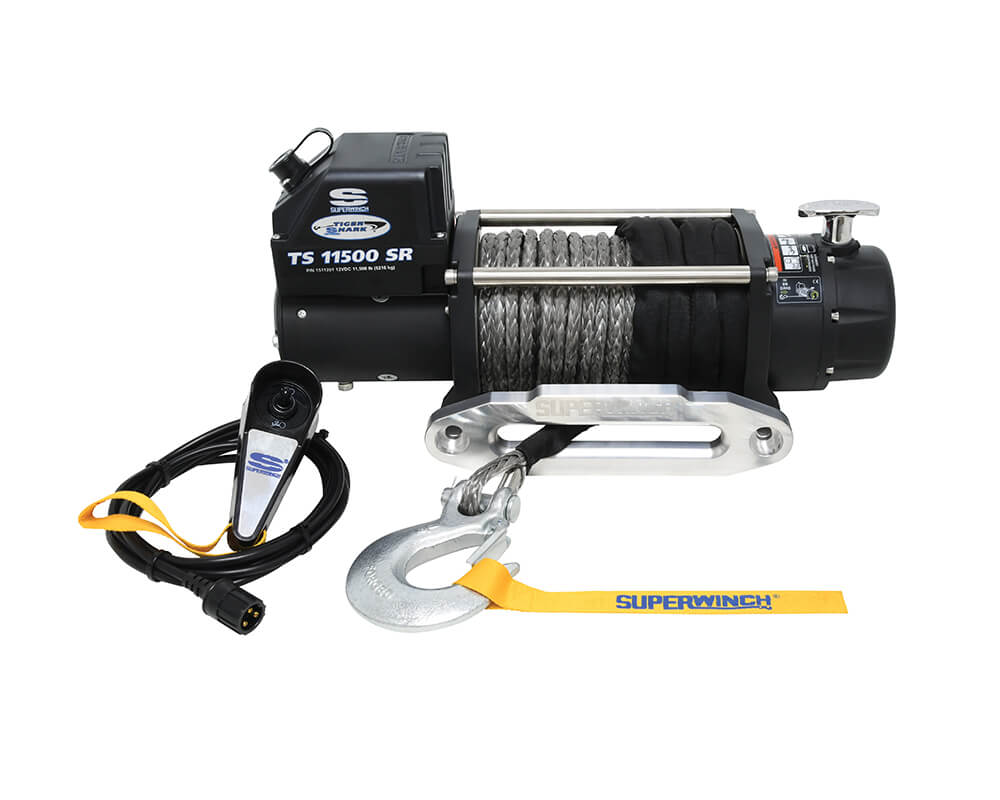

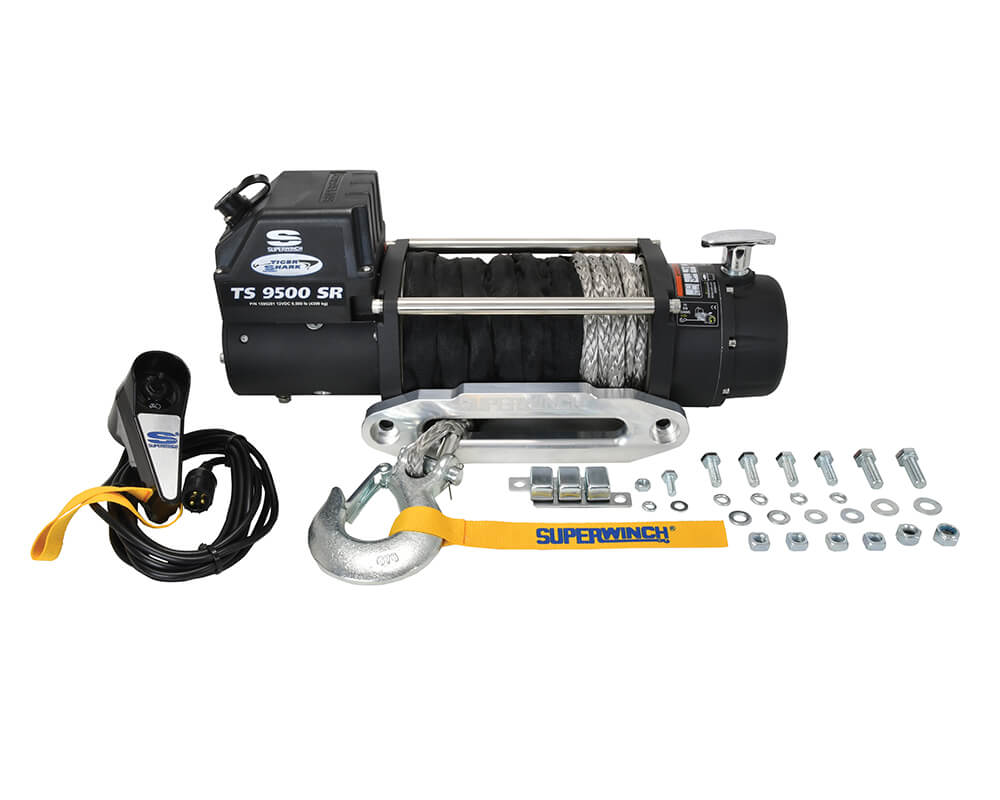

From powerful motors, strong gears and durable stainless steel components. This electric winch is available with steel cable and synthetic winch rope. The solenoidbox can easily be relocated to a position that meets your demands. The hanheld remote is included with this winch. A wireless remote can be purchased separately.
| Specifications | TS 9500-SR | TS 11500-SR | TS 15000-SR | TS 18000-SR |
|---|---|---|---|---|
| Part number | Superwinch 1595201 | Superwinch 1511201 | Superwinch 1515001 | Superwinch 1518001 |
| Rated Line Pull | 4309kg | 5216kg | 6804kg | 8165kg |
| Motor | 12V DC | 12V DC | 12V DC | 12V DC |
| Gear | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary |
| Brake | Mechanical | Mechanical | Conical | Conical |
| Remote | Wired (wireless optional) | Wired (wireless optional) | Wired (wireless optional) | Wired (wireless optional) |
| Rope | ø9.5mm x 24.3m | ø9.5mm x 24.3m | ø12mm x 24m | ø13mm x 24m |
| Fairlead | Hawse (⊗254mm) | Hawse (⊗254mm) | Hawse (⊗254mm) | Hawse (⊗254mm) |
| Measurements LxWxH | 615.2mm x 157.5mm x 278.2mm | 615.2mm x 157.5mm x 278.2mm | 610mm x 249mm x 198mm | 618mm x 290mm x 216mm |
| Bolt pattern LxW | 254mm x 114.3mm | 254mm x 114.3mm | 254mm x 114.3mm | 254mm x 114.3mm |
| Weight | 26.7kg | 26.7kg | 35kg | 37kg |
| Line speed No load/Load | 5.7MPM / 1.2MPM | 5.7MPM / 0.6MPM | 6.0MPM / 0.9MPM | 19.7MPM / 3.8MPM |
| Amps No load/Load | 80AMP / 340AMP | 80AMP / 410AMP | 70AMP / 410AMP | 70AMP / 440AMP |
| Specifications |
| Part number |

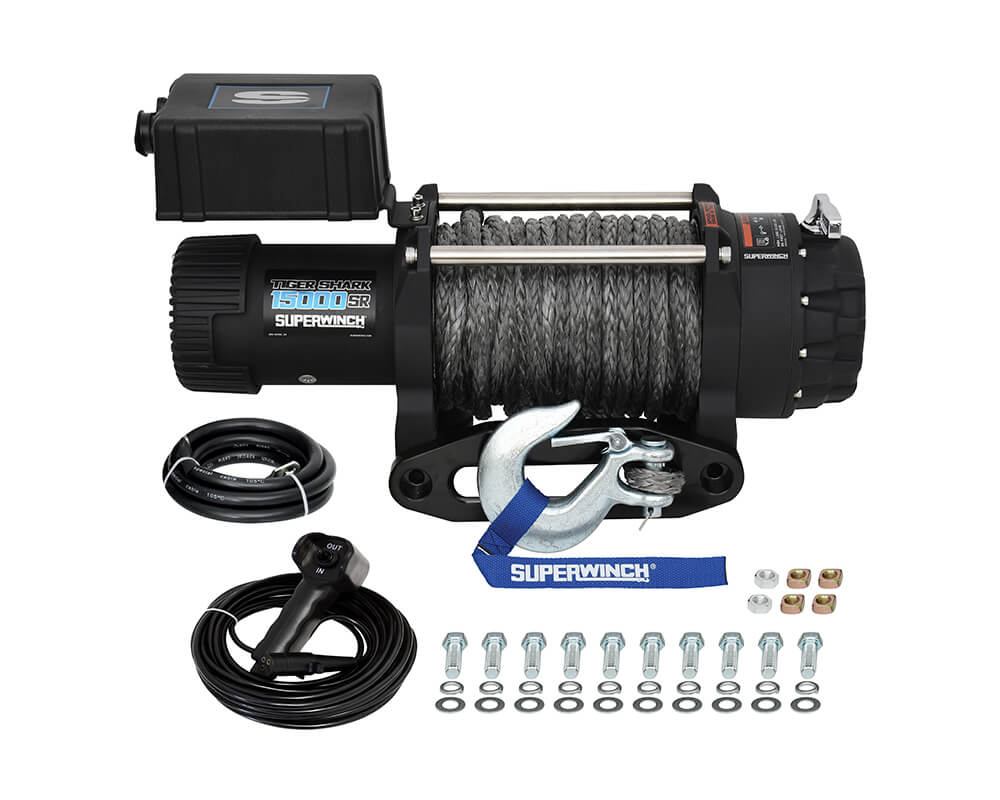

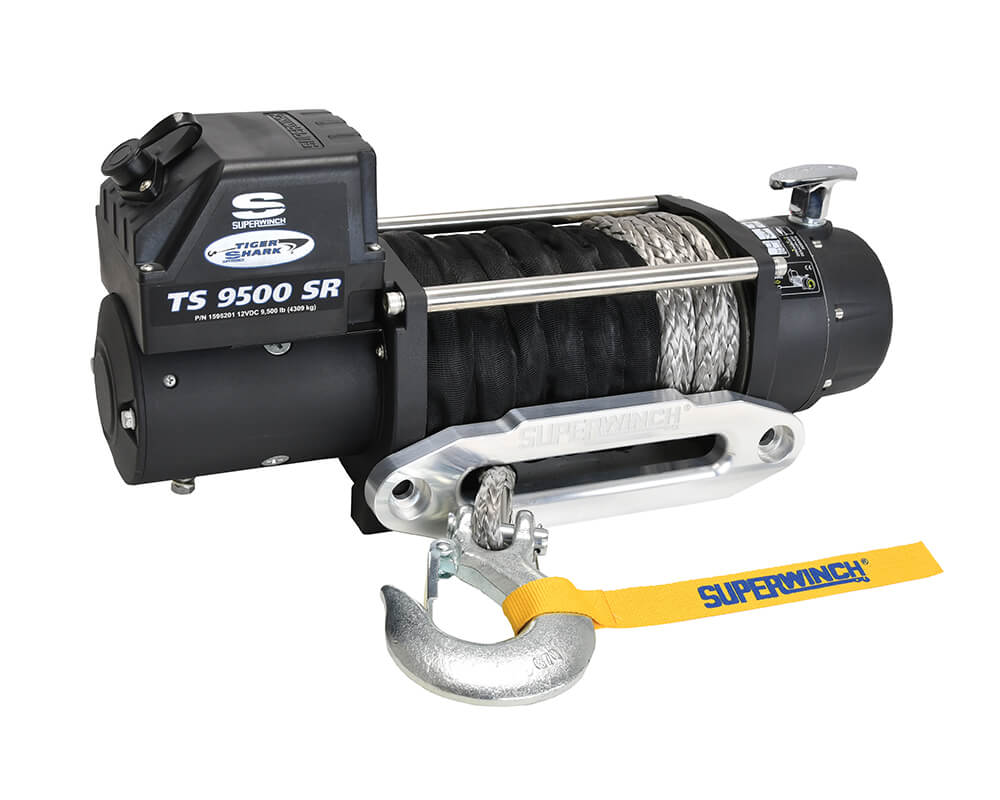

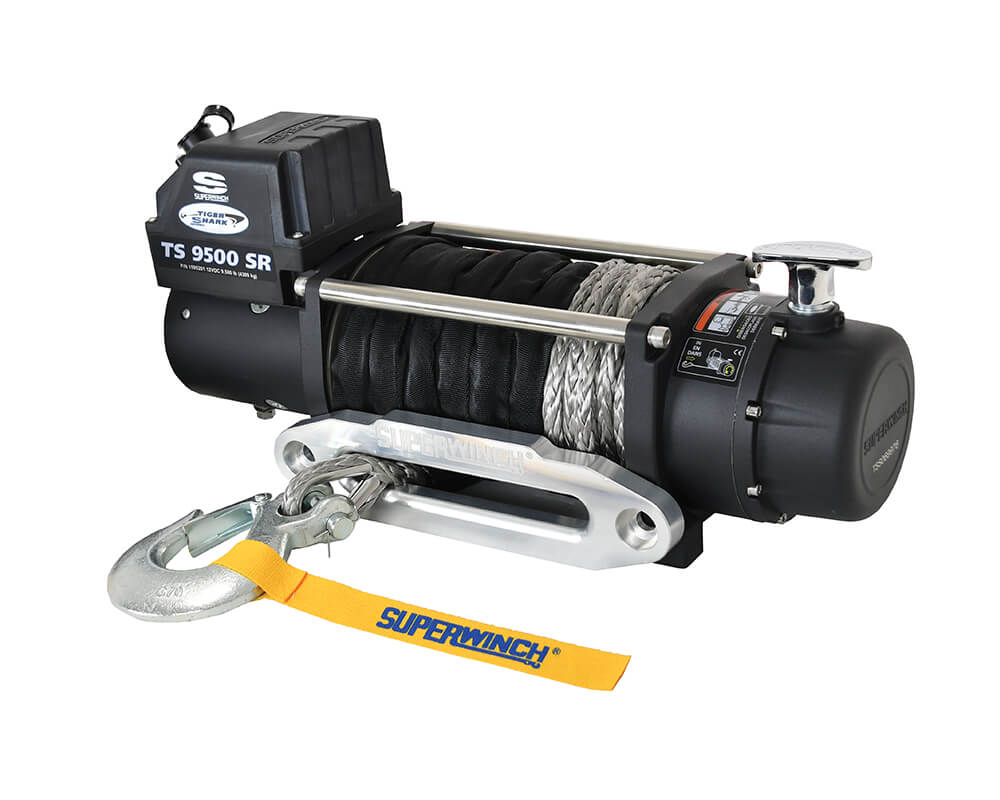

| TS 9500 – Superwinch 1595201 |

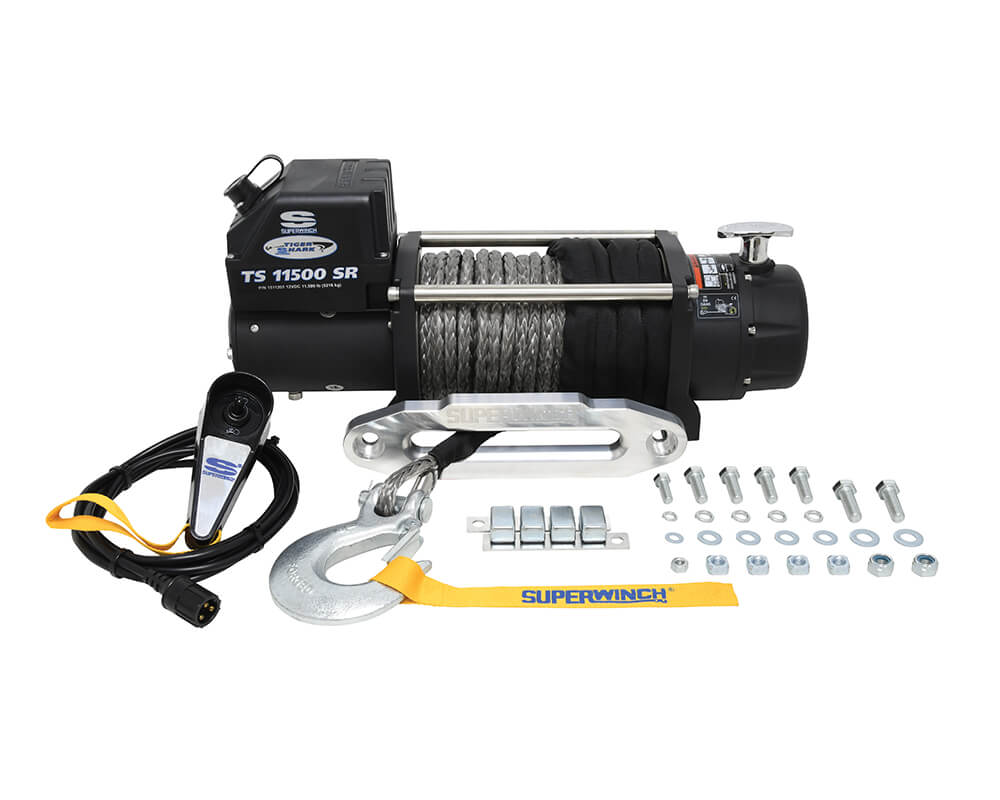

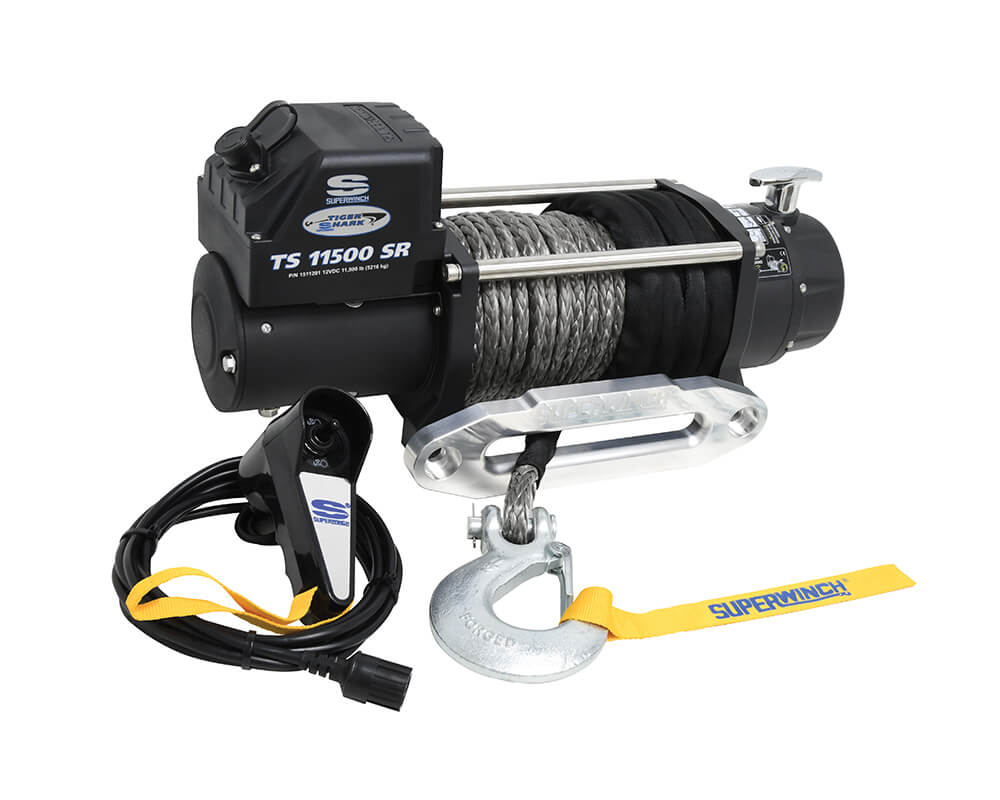

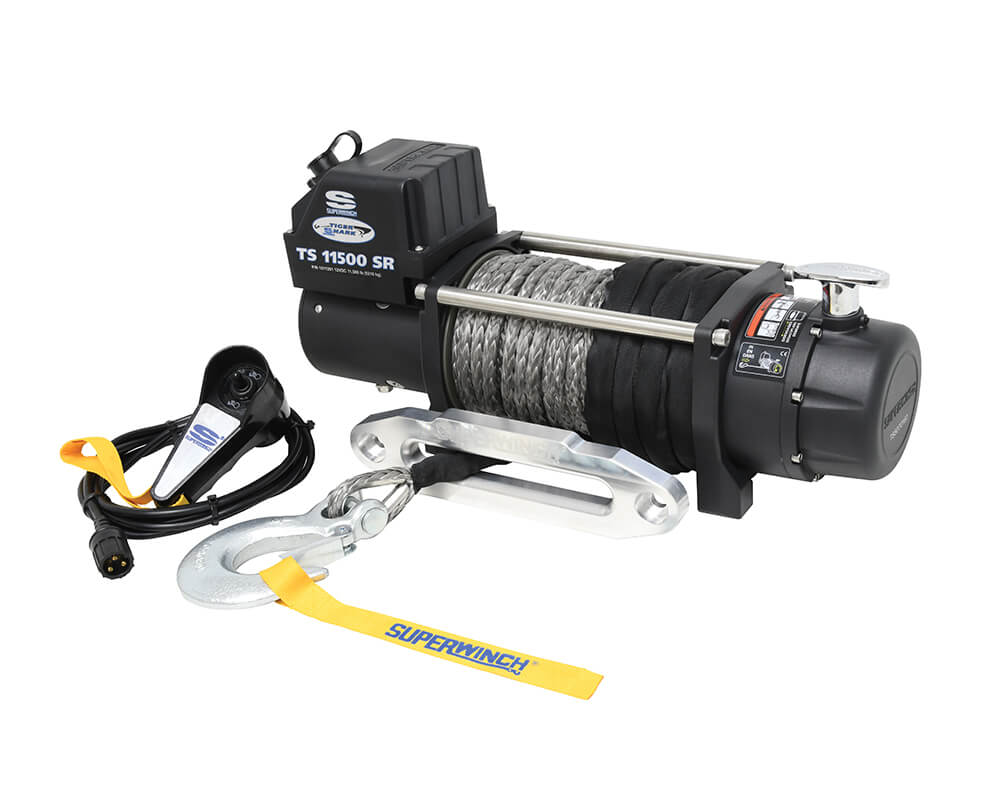

| TS 11500 – Superwinch 1511201 |

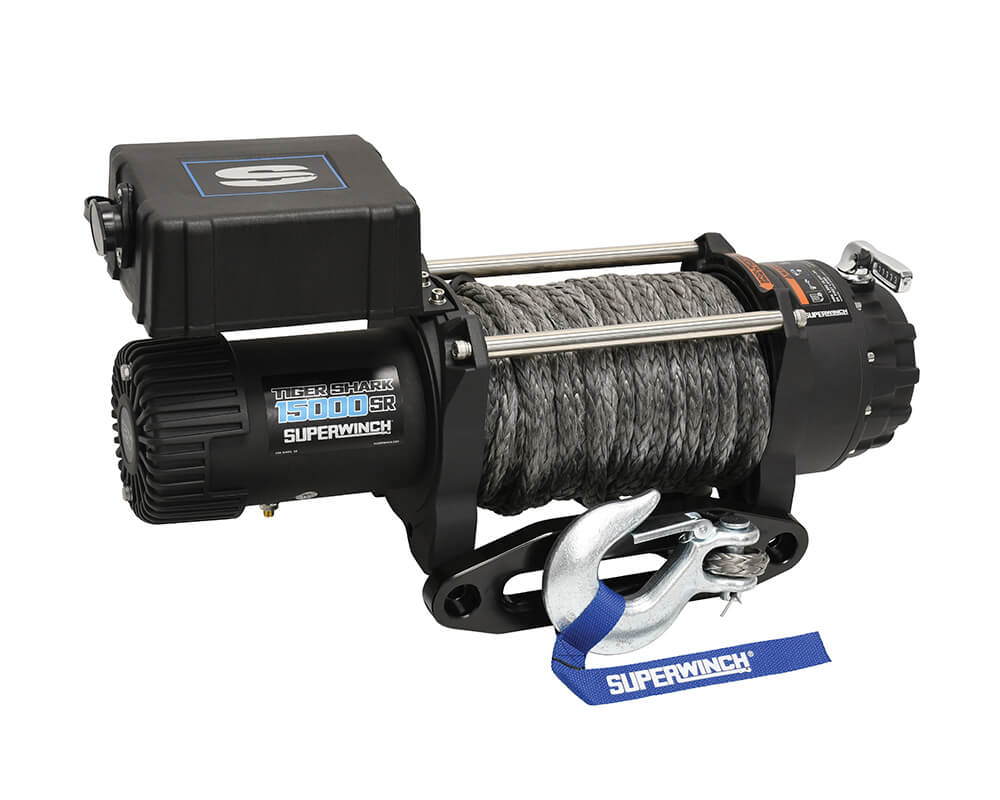

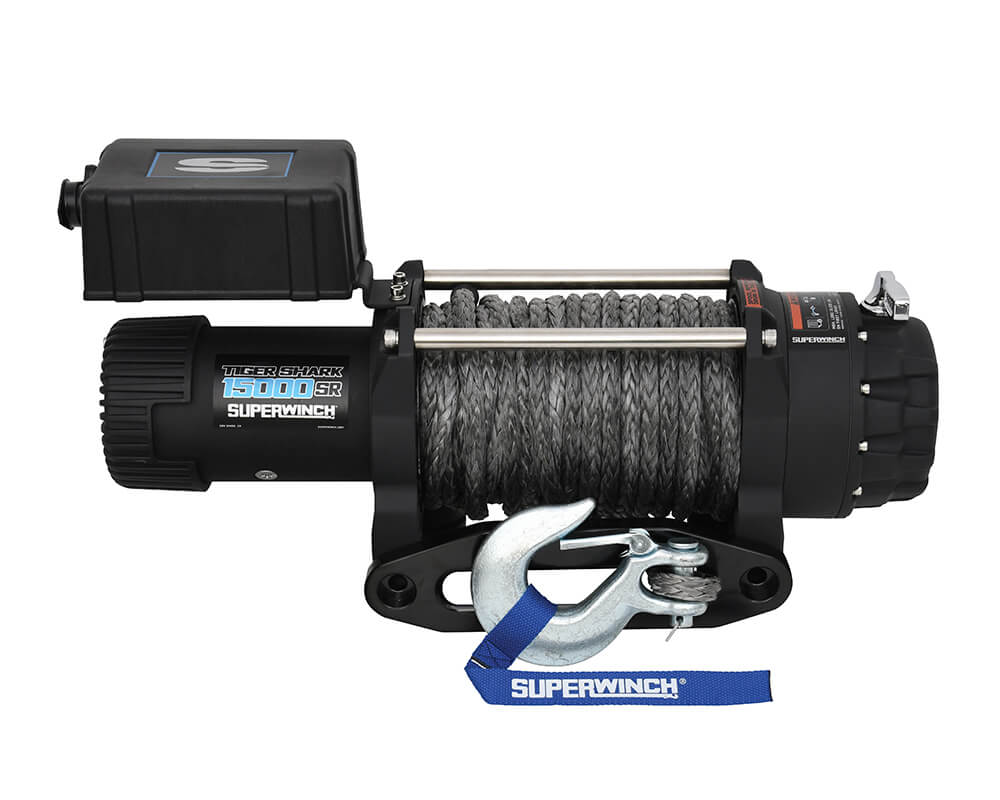

| TS 15000 – Superwinch 1515001 |
| TS 18000 – Superwinch 1518001 |
| Rated Line Pull |
| TS 9500 – 4309kg |
| TS 11500 – 5216kg |
| TS 15000 – 6804kg |
| TS 18000 – 8165kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage Planetary |
| Brake |
| TS 9500/11500 – Mechanical |
| TS 15000/18000 – Conical |
| Remote |
| Wired (wireless optional) |
| Rope |
| TS 9500/11500 – ø9.5mm x 24.3m |
| TS 15000 – ø12mm x 24m |
| TS 18000 – ø13mm x 24m |
| Fairlead |
| Hawse (⊗254mm) |
| Measurements LxWxH |
| TS 9500/11500 – 615.2mm x 157.5mm x 278.2mm |
| TS 15000 – 610mm x 249mm x 198mm |
| TS 18000 – 618mm x 290mm x 216mm |
| Bolt pattern LxW |
| 254mm x 114.3mm |
| Weight |
| TS 9500/11500 – 26.7kg |
| TS 15000 – 35kg |
| TS 18000 – 37kg |
| Line speed No load/Load |
| TS 9500 – 5.7MPM / 1.2MPM |
| TS 11500 – 5.7MPM / 0.6MPM |
| TS 15000 – 6.0MPM / 0.9MPM |
| TS 18000 – 19.7MPM / 3.8MPM |
| Amps No load/Load |
| TS 9500 – 80AMP / 340AMP |
| TS 11500 – 80AMP / 410AMP |
| TS 15000 – 70AMP / 410AMP |
| TS 18000 – Â 70AMP / 440AMP |
Additional information
| Weight | 38 kg |
|---|---|
| Dimensions | 60 × 40 × 40 cm |
