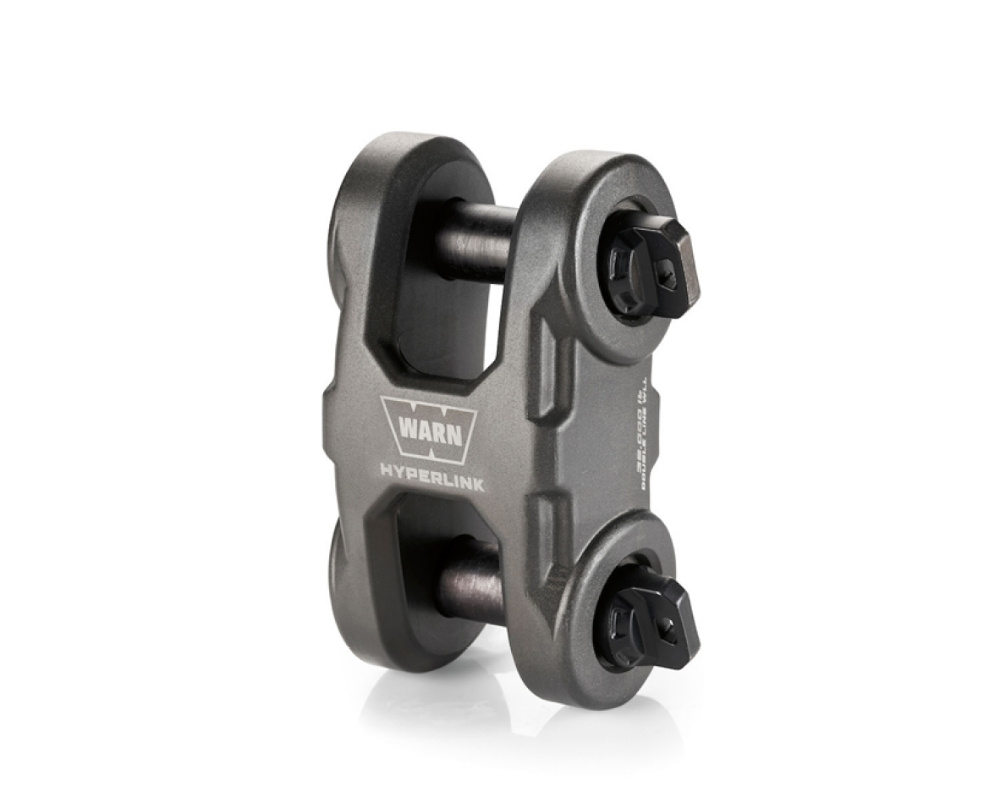

Warn Epic Hyperlink

A forged aluminum body with two forged steel pins gives it unparalleled strength. And an intelligent design makes it possible to quickly and easily connect to other recovery materials. You can order the Hyperlink insulator, it prevents dirt and damage around the pin. The isolator is available in red and black, per set 2 isolators are included. Warn has a complete line of Epic accessories, combine these items for a fantastic look!

Specifications	Polished	Anthracite	Black
Part number	Warn 100945	Warn 100625	Warn 100630
Color	Polished	Anthracite (gunmetal)	Black
Material	Forged 6061-T6 billet aluminium, forged steel pin	Forged 6061-T6 billet aluminium, forged steel pin	Forged 6061-T6 billet aluminium, forged steel pin
Measurements LxBxH (incl. pin)	159mm x 108mm x 70mm	159mm x 108mm x 70mm	159mm x 108mm x 70mm
Diameter pin	ø22mm	ø22mm	ø22mm
Maximum load	8165kg	8165kg	8165kg

Specifications
Part number
Warn 100625
Color
Anthracite (gunmetal)
Material
Forged 6061-T6 billet aluminium, forged steel pin
Measeurements LxBxH (incl. pin)
159mm x 108mm x 70mm
Diameter pin
ø22mm
Maximum load
8165kg
