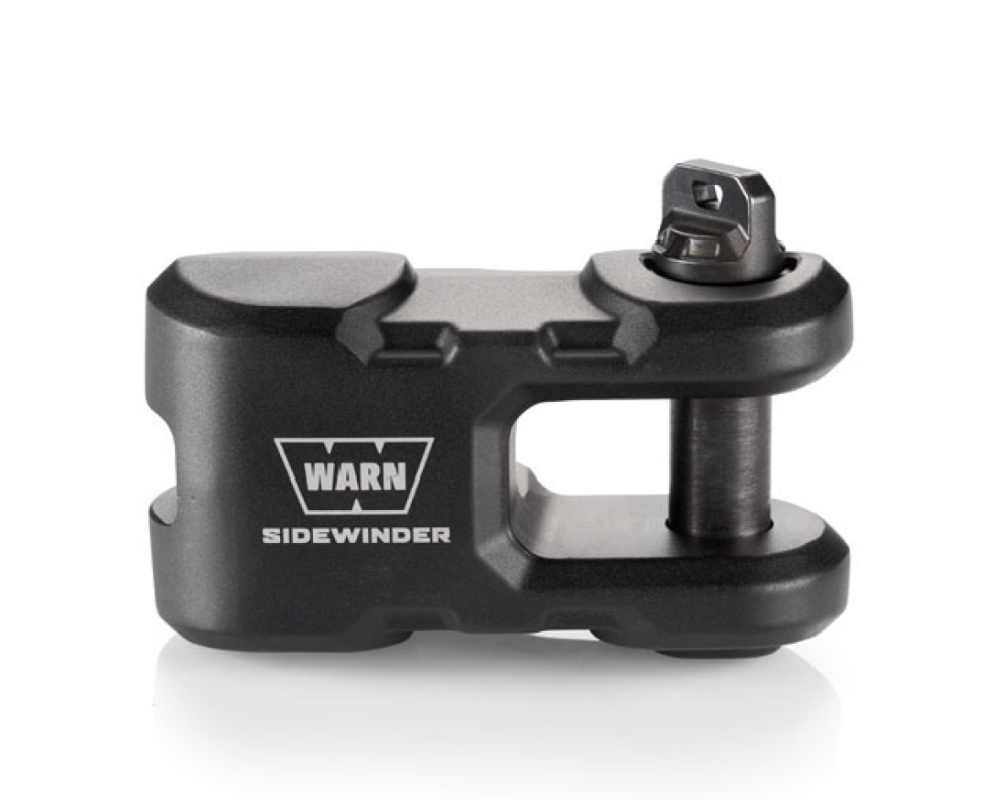

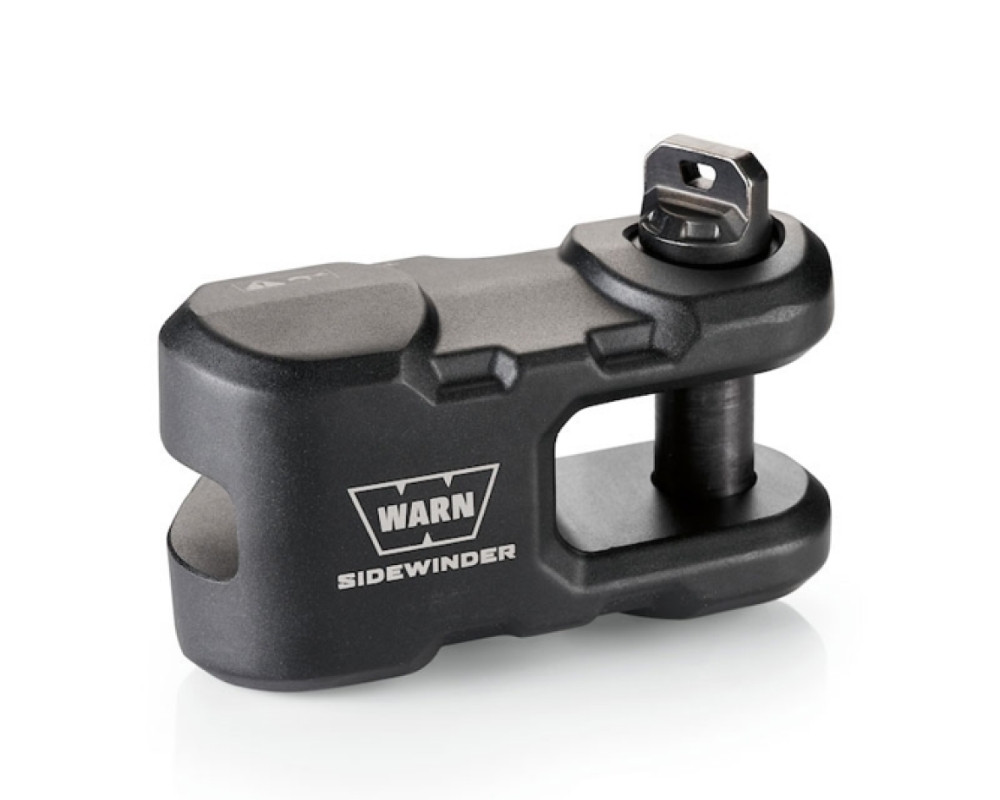

Warn Epic Sidewinder

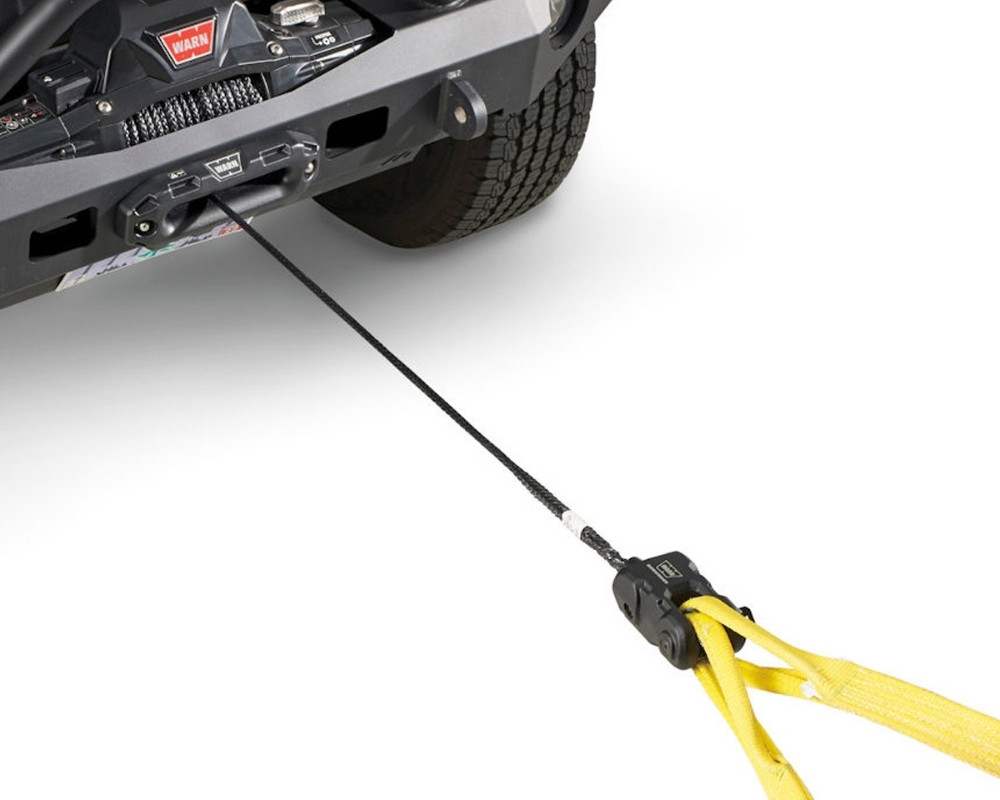

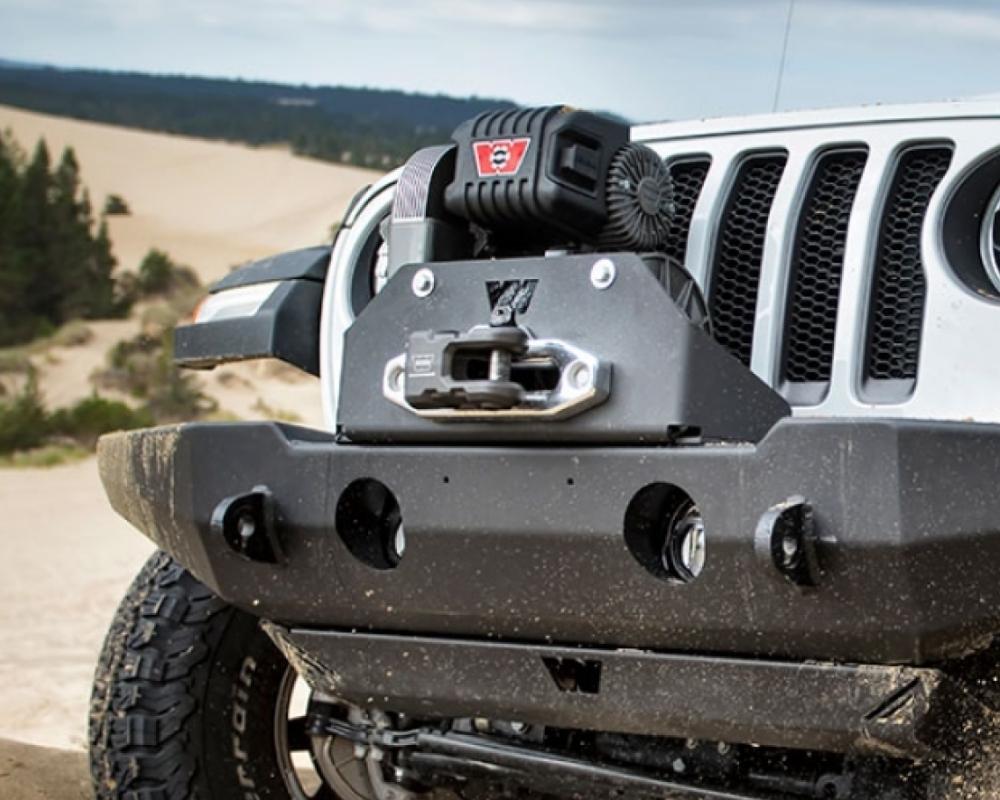

A forged aluminum body with forged steel pin gives it unparalleled strength. And an intelligent design makes it possible to quickly and easily connect to other recovery materials. Replace your winch hook with this Epic sidewinder. You can order the Sidewinder insulator, it prevents dirt and damage around the pin. The insulator is available in red and black. Warn has a complete line of Epic accessories, combine these items for a fantastic look.

Specifications	Polished	Anthracite	Black
Part number	Warn 100640	Warn 100635	Warn 100770
Color	Polished	Anthracite (gunmetal)	Black
Material	Forged 6061-T6 billet aluminium, pin is made of forged steel	Forged 6061-T6 billet aluminium, pin is made of forged steel	Forged 6061-T6 billet aluminium, pin is made of forged steel
Measurements LxBxH (incl. pin)	150mm x 108mm x 74mm	150mm x 108mm x 74mm	150mm x 108mm x 74mm
Diameter pin	ø22mm	ø22mm	ø22mm
Maximum load	8165kg	8165kg	8165kg

Specifications
Part number
Warn 100770
Color
Black
Material
Forged 6061-T6 billet aluminium, pin is made of forged steel
Measurements LxBxH (incl. pin)
150mm x 108mm x 74mm
Diameter pin
ø22mm
Maximum load
8165kg
