- Electric winch 12V
- 5443kg Rated Line pull
- Synthetic rope
- Remote with cable 3.7m
- Wireless remote Hub (smartphone)

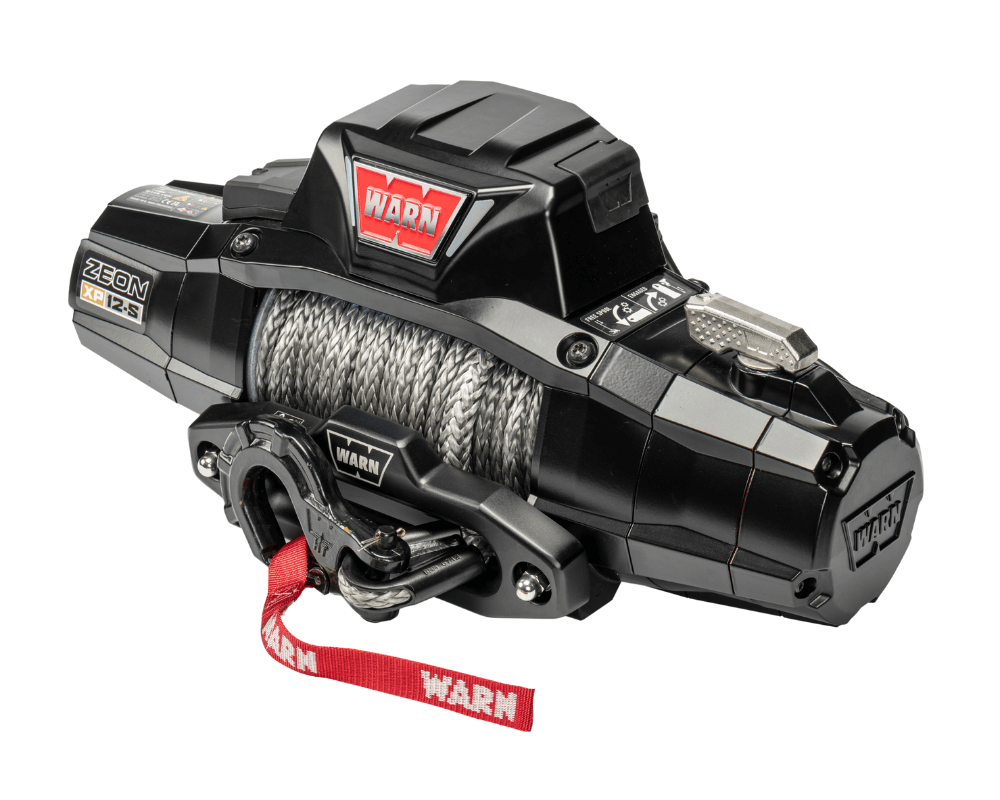

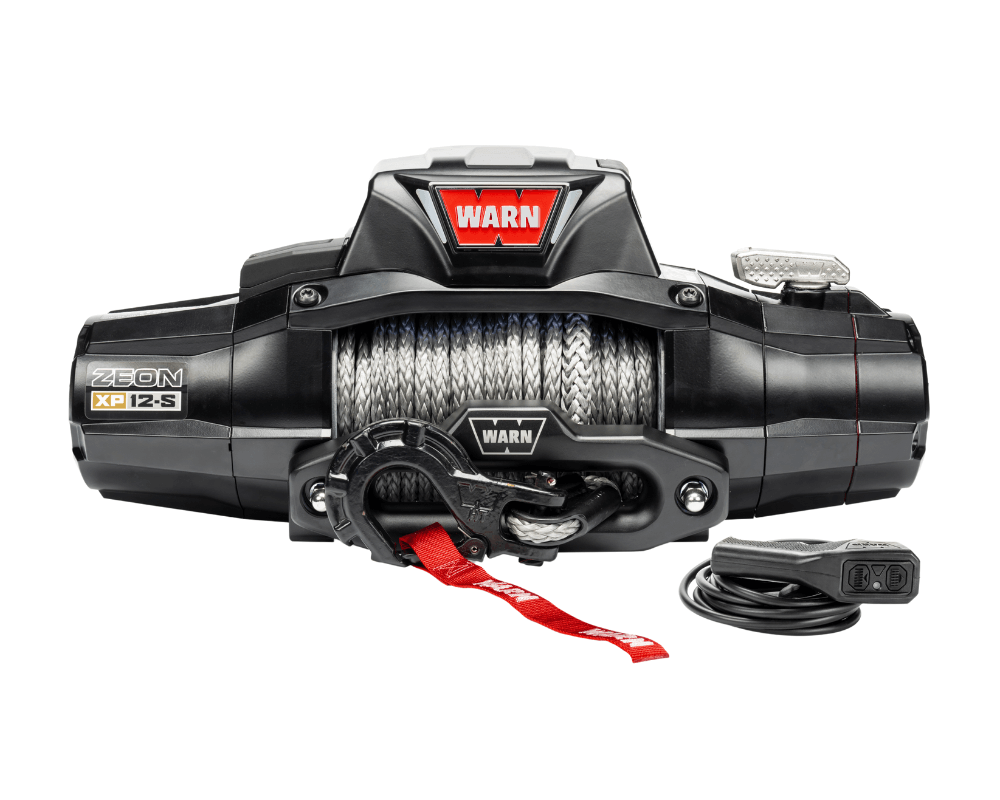

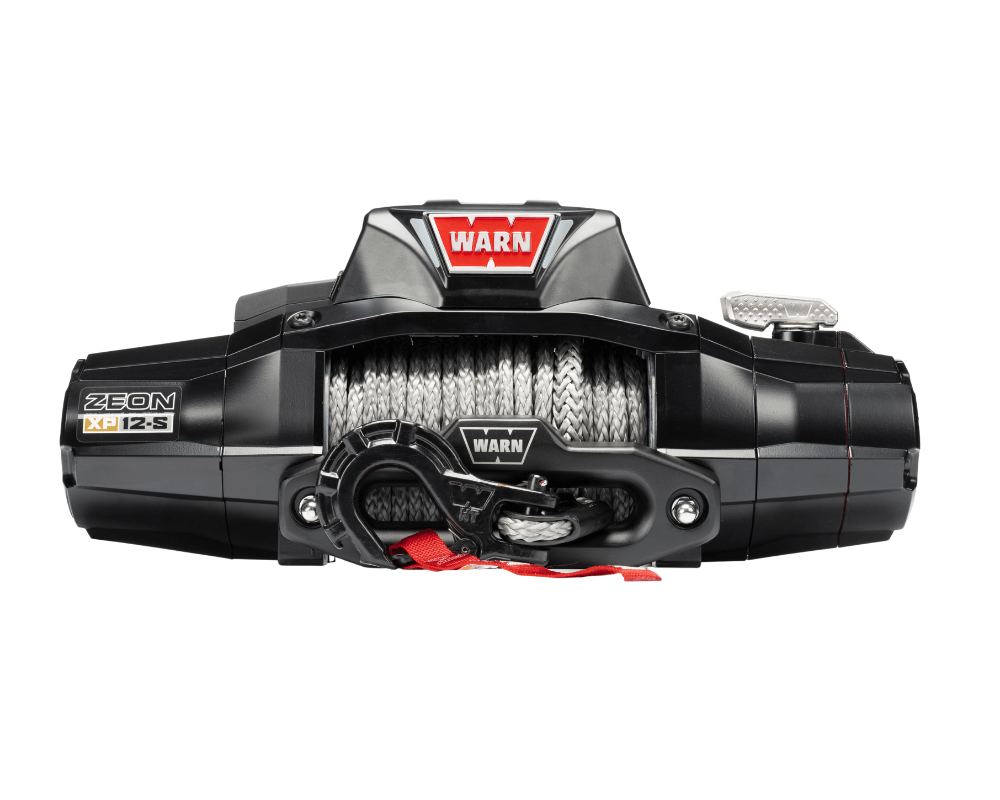

Warn ZEON XP 12 | 12V | Synthetic Rope | 110120
€4.226,53 incl. vat (21%)
Beschikbaar vanaf september
Beschikbaar vanaf september
Description
Warn ZEON XP 12 – Synthetic Rope Winch
“Built for the challenges you shouldn’t have accepted”
The WARN ZEON XP has been completely re-engineered from the ground up, featuring brand-new controls that give you the confidence to push your winch to its full potential. Whether you’re navigating unfamiliar terrain or in the middle of a tough recovery operation, this winch delivers unmatched control and reliability.
With best-in-class line speed and pulling power, the ZEON XP performs under the most extreme conditions. This isn’t just any winch – it’s a highly durable and incredibly dependable recovery tool built to deliver when it matters most.

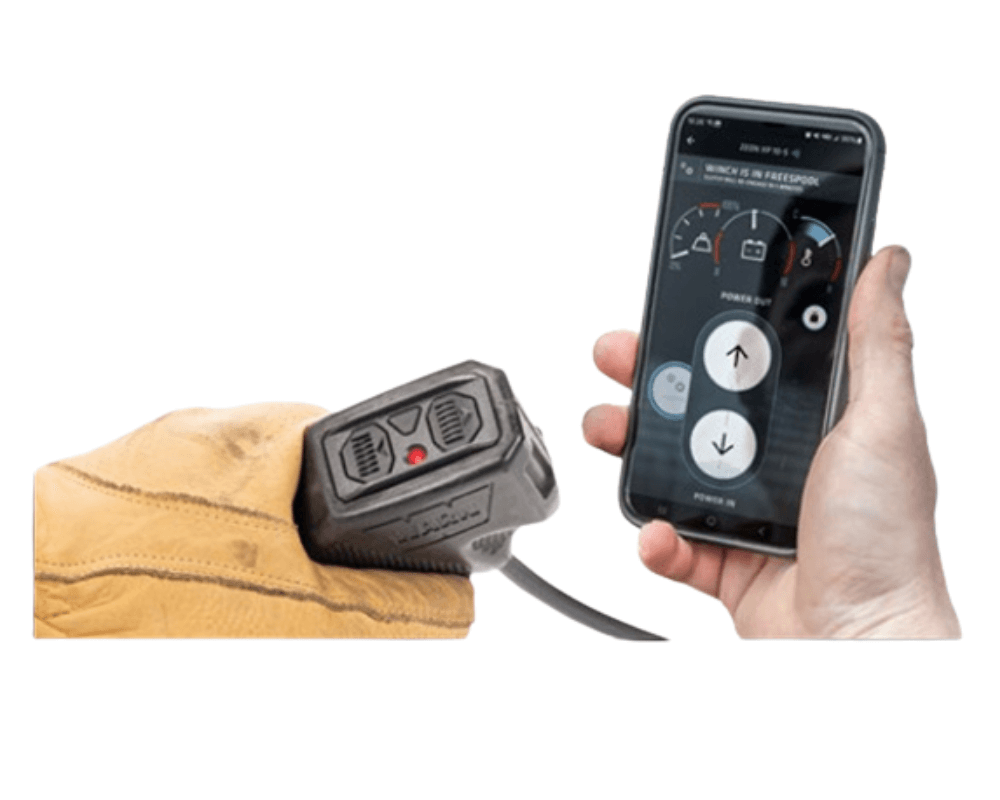

Experience the cutting-edge precision and power of our latest winching technology. Thanks to dual control options, you’re in command at all times: choose between a wired handheld remote or the wireless HUB system, controllable via your smartphone. Maximum freedom and flexibility—wherever your adventure takes you.

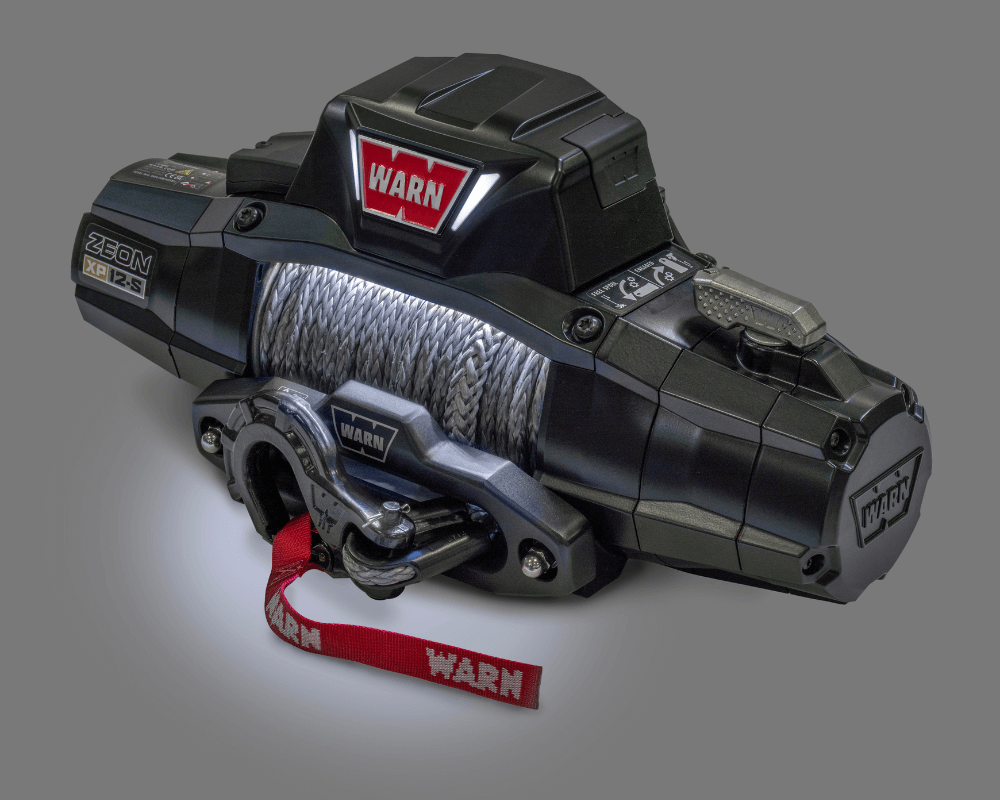

The new-generation control system provides real-time feedback on winch motor temperature, load, and your vehicle’s battery condition. You stay fully informed and in control at every stage of the recovery. Dynamic lighting gives a clear visual cue of the winch’s status with subtle color changes—both functional and stylish. And with a remote-actuated clutch, backed by a manual override, winching is faster and easier than ever.
The ZEON XP delivers a winning combination of elite line speed, exceptional durability, and a pulling capacity of up to 14,000 lbs (6,350 kg). Its ultra-reliable waterproof design meets IP68 standards for submersion and IP69K for high-pressure spray resistance—ready to take on any challenge, in any climate.
Outfitted with a black anodized forged aluminum fairlead and a high-quality black Epic hook, the winch also comes with WARN’s signature Spydura synthetic rope, complete with abrasion-resistant sleeve and heat-resistant red inner layers. Designed, engineered, and assembled in the USA—this winch is built for whatever you dare to face.
| Specifications | ZEON XP 10-S | ZEON XP 12-S | ZEON XP 14-S |
|---|---|---|---|
| Part Number | Warn 110100 | Warn 110120 | Warn 110140 |
| Rated Line pull | 4536kg | 5443kg | 6350kg |
| Motor | 12V DC | 12V DC | 12V DC |
| Gear Train | 3-stage planetary | 3-stage planetary | 3-stage planetary |
| Brake | Mechanical | Mechanical | Mechanical |
| Remote Control | Wired 3.7m and wireless via Hub (smartphone control) | Wired 3.7m and wireless via Hub (smartphone control) | Wired 3.7m and wireless via Hub (smartphone control) |
| Free Spool | Manual and switchable via wired remote control | Manual and switchable via wired remote control | Manual and switchable via wired remote control |
| Winch Rope | 9.5mm x 30m Spydura | 9.5mm x 24.4m Spydura Pro | 9.5mm x 24.4m Spydura Pro |
| Fairlead | Hawse fairlead (ø254mm) | Hawse fairlead (ø254mm) | Hawse fairlead (ø254mm) |
| Dimensions LxWxH | 606.7mm x 172mm x 267.2mm | 606.7mm x 172mm x 267.2mm | 606.7mm x 172mm x 267.2mm |
| Bolt Pattern LxW | 254mm x 114.3mm | 254mm x 114.3mm | 254mm x 114.3mm |
| Weight | 32kg | 32kg | 32kg |
| Line Speed No load/Load | 12.19MPM / 1.52MPM | 9.45MPM / 0.91MPM | 7.95MPM / 0.64MPM |
| Amp draw No load/Load | 64AMP / 458AMP | 67AMP / 466AMP | 65AMP / 482AMP |
| View Alternative Products | View Warn ZEON XP 10 | View WARN ZEON XP 14 |
| Specifications |
| Part Number |
| Warn 110120 |
| Rated line pull |
| 5443kg |
| Motor |
| 12v DC |
| Gear Train |
| 3-stage planetary |
| Brake |
| Mechanical |
| Remote Control |
| Wired 3.7m and wireless via Hub (smartphone control) |
| Free Spool |
| Manual and switchable via wired remote control |
| Winch Rope |
| 9.5mm x 24.4m Spydura Pro |
| Fairlead |
| Hawse fairlead (ø254mm) |
| Dimensions LxWxH |
| 606.7mm x 172mm x 267.2mm |
| Bolt Pattern LxW |
| 254mm x 14.3mm |
| Weight |
| 32kg |
| Line Speed No load/Load |
| 9.45 / 0.91MPM |
| Amp draw No load/Load |
| 67 / 466AMP |
“`
Let me know if you want the tables styled, simplified for mobile, or embedded into a specific CMS or web builder!
Additional information
| Weight | 40 kg |
|---|---|
| Dimensions | 70 × 60 × 40 cm |
