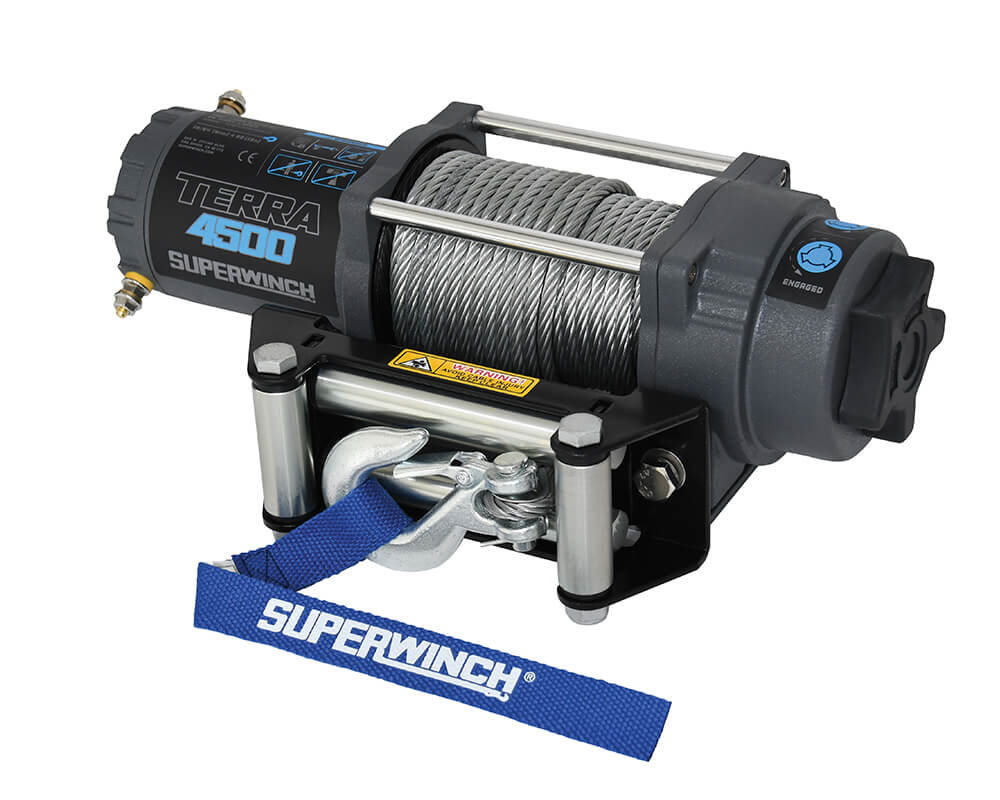

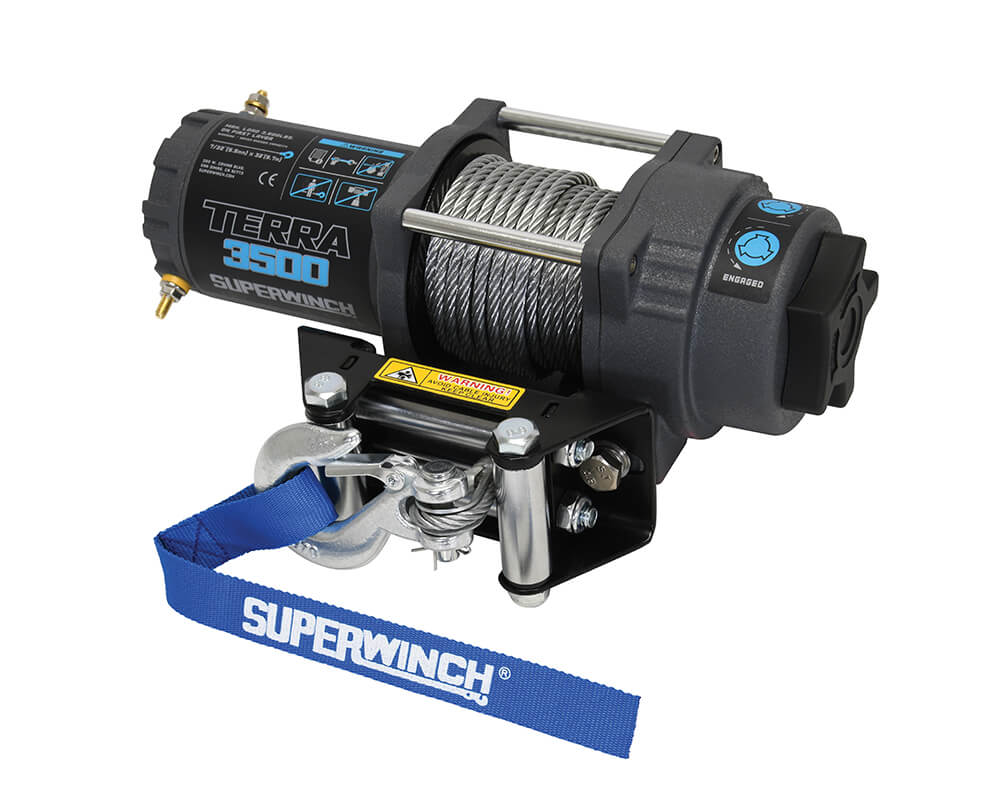

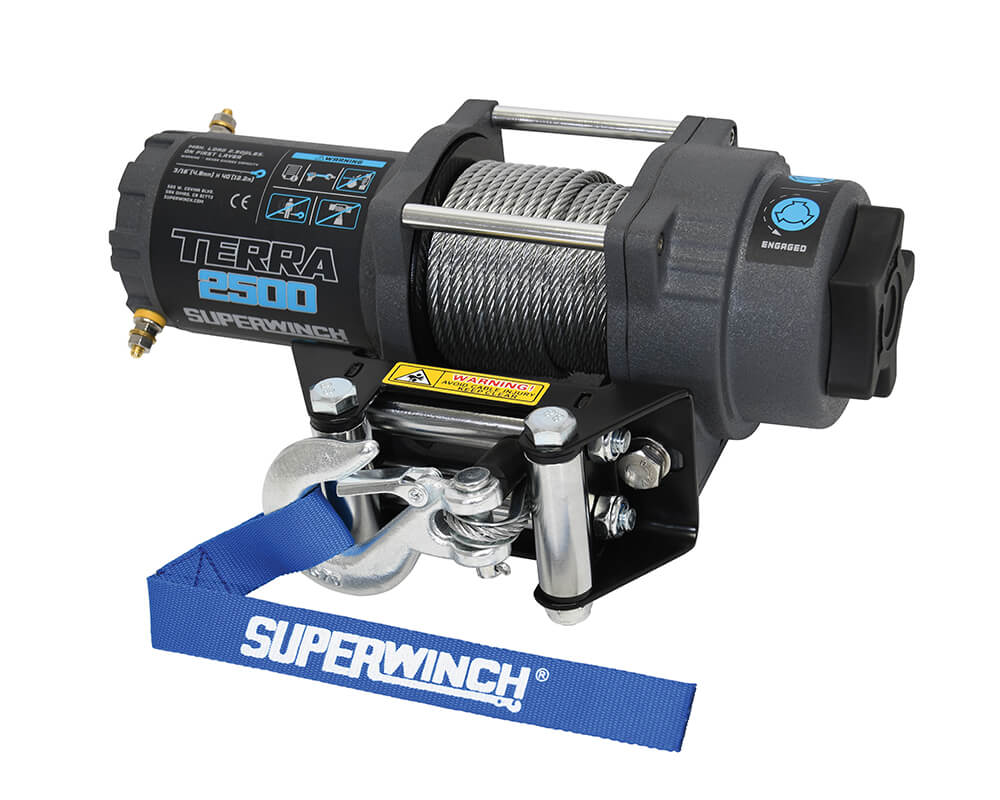

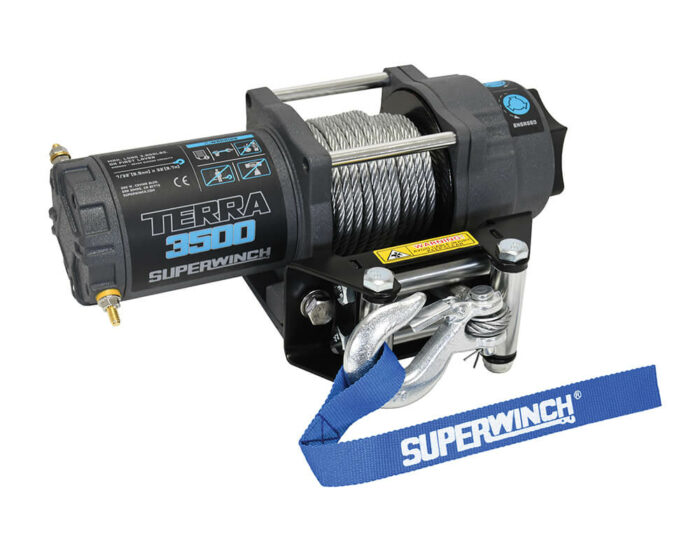

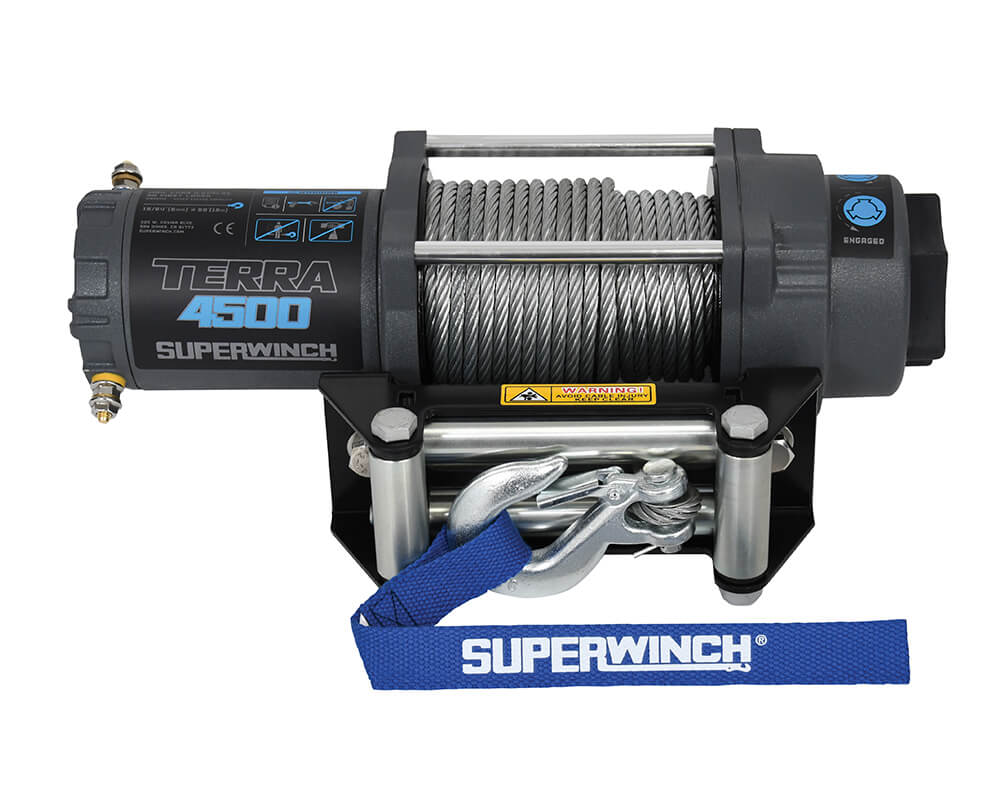

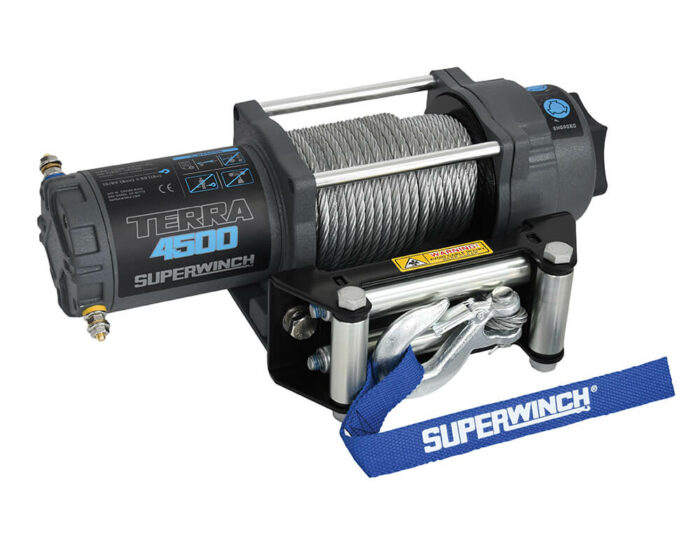

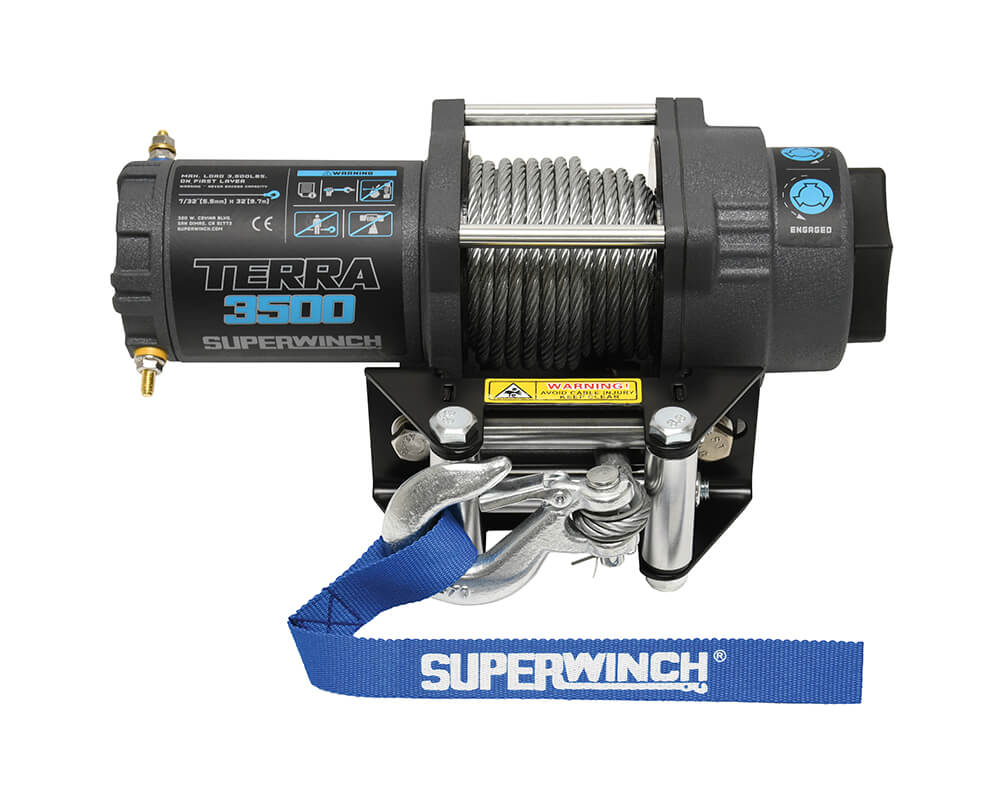

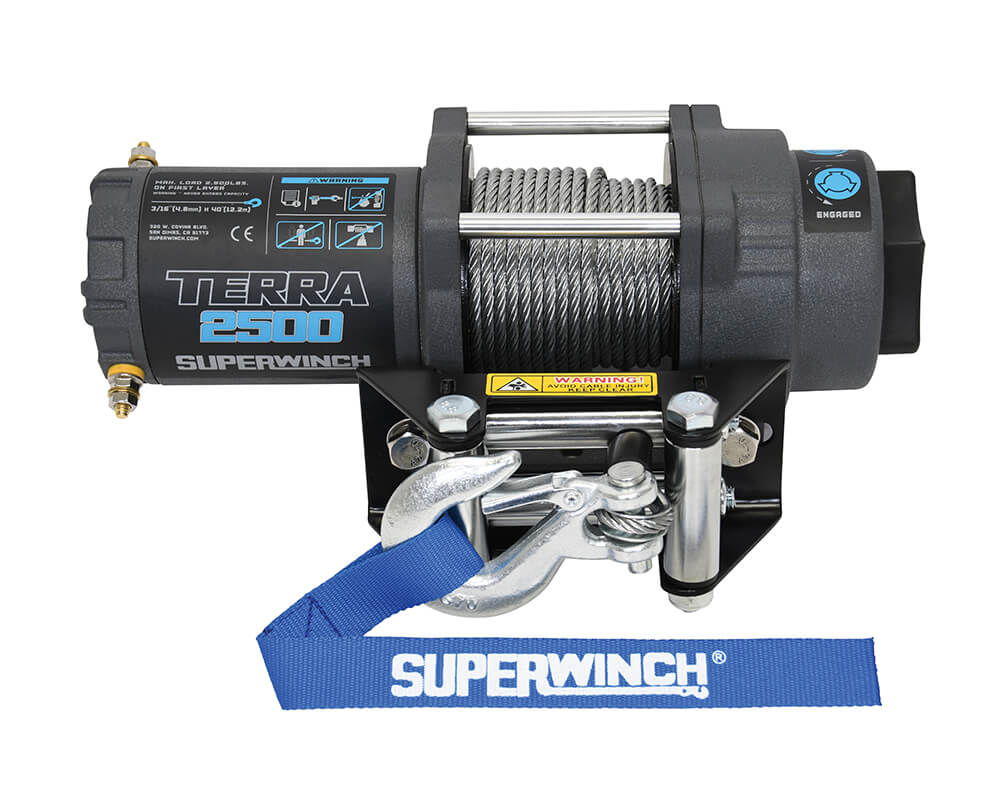

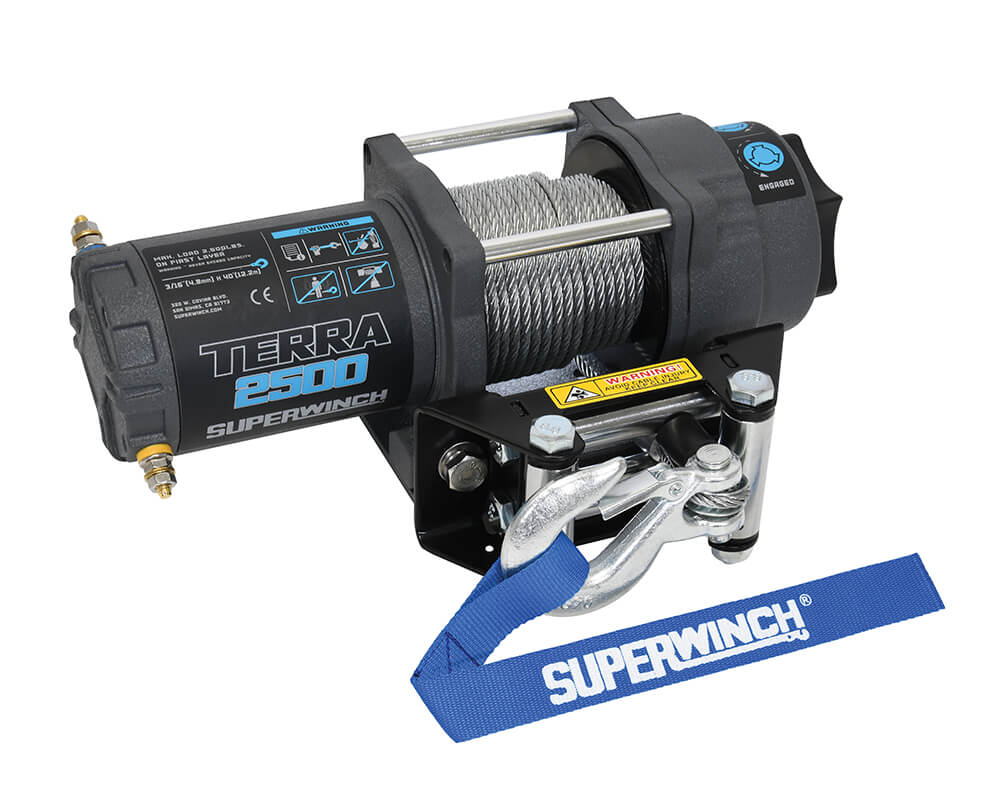

Superwinch Terra – Wire cable

Price range: €387,20 through €471,90 incl. vat (21%)

In stock

Description

The Superwinch winch Terra – The perfect choice if you are looking for a compact and reliable electric winch.

Superwinch’s Terra Series winches are specifically designed to meet the demands of ATV and UTV enthusiasts. Available in different capacities, with a choice of steel cable or synthetic rope. This winch features a powerful motor, strong all-steel gearing and a steel drum for superior performance and durability.

All Terra Series winches are equipped with a remote mountable control box with a sealed solenoid and circuit breaker. to ensure reliable operation. The freewheel is easily managed by an easy-to-engage ergonomic control knob. Each winch contains a wired remote control and a switch that can be mounted on the handlebar. A wireless control is optional and can be purchased separately. The Terra series winches are IP67 rated for water and dust protection.

Specifications Terra 25 Terra 35 Terra 45
Part number Superwinch 1125260 Superwinch 1135260 Superwinch 1145260
Rated Line Pull 1134kg 1588kg 2041kg
Motor 12V DC 12V DC 12V DC
Gear 3-Stage Planetary 3-Stage Planetary 3-Stage Planetary
Brake Mechanical Mechanical Mechanical
Remote Handlebar switch and wired remote (wireless optional) Handlebar switch and wired remote (wireless optional) Handlebar switch and wired remote (wireless optional)
Cable ø4.8mm x 12.2m ø5.6mm x 9.8m ø6.0mm x 15.2m
Fairlead Roller (⊗123.7mm) Roller (⊗123.7mm) Roller (⊗167.4mm)
Measurements LxWxH 324mm x 114mm x 116mm 324mm x 114mm x 116mm 366mm x 114mm x 116mm
Bolt pattern LxW 123.7mm x 76.2mm 123.7mm x 76.2mm 167.4mm x 76.2mm
Weight 8kg 9kg 10kg
Line speed No load/Load 7.5MPM / 2.1MPM 4.9MPM / 1.8MPM 4.9MPM / 1.2MPM
Amp No load/Load 15AMP / 175AMP 15AMP / 150AMP 17AMP  / 210AMP

Specifications
Part number
Terra 25 – Superwinch 1125260
Terra 35 – Superwinch 1135260
Terra 45 – Superwinch 1145260
Rated Line Pull
Terra 25 – 1134kg
Terra 35 – 1588kg
Terra 45 – 2041kg
Motor
12v DC
Gear
3-Stage Planetary
Brake
Mechanical
Remote
Handlebar switch and wired remote
(wireless optional)
Cable
Terra 25 – ø4.8mm x 12.2m
Terra 35 – ø5.6mm x 9.8m
Terra 45 – ø6.0mm x 15.2m
Fairlead
Terra 25/35 – Roller (⊗123.7mm)
Terra 45 – Roller (⊗167.4mm)
Measurements LxWxH
Terra 25/35 – 324mm x 114mm x 116mm
Terra 45 – 366mm x 114mm x 116mm
Bolt pattern LxW
Terra 25/35 – 123.7mm x 76.2mm
Terra 45 – 167.4mm x 76.2mm
Weight
Terra 25 – 8kg
Terra 35 – 9kg
Terra 45 – 10kg
Line speed No load/Load
Terra 25 – 7.5MPM / 2.1MPM
Terra 35 –  4.9MPM / 1.8MPM
Terra 45 – 4.9MPM / 1.2MPM
Amps No load/Load
Terra 25 – 15AMP / 175AMP
Terra 35 –  15AMP / 150AMP
Terra 45 – 17AMP  / 210AMP

Additional information

Weight 11 kg
Dimensions 30 × 20 × 20 cm
