- Specially for all your lifting applications
- Steel cable, controls, relay pack and winch window can be purchased separately
- Equipped with all certifications needed on the job

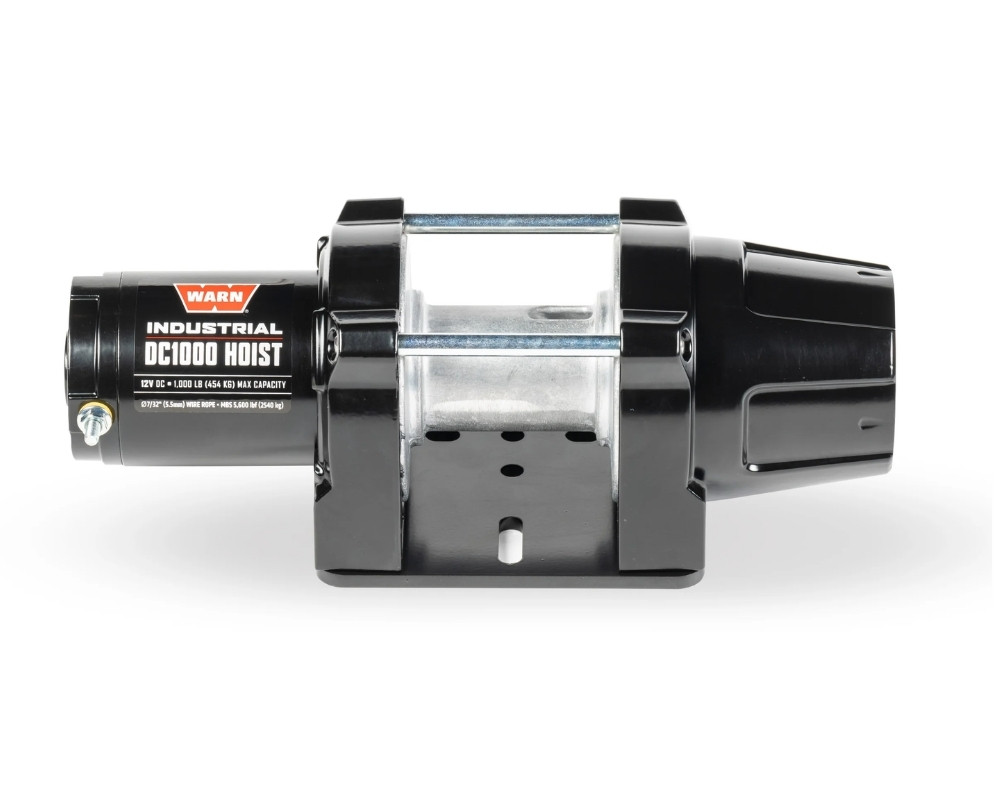

Warn Hoist DC1000 Short Drum | 12V | Winch Only | 1051051
€10.229,36 incl. vat (21%)
Available on backorder
Available on backorder
Description
Warn Hoist winch 12V
The Warn DC Hoist winch – With IP68 and IP69 classification, a powerful DC motor with a permanent magnet and a robust seal. That’s the DC winch from Warn, designed specifically for your lifting job.
The proven 3-stage all metal geartrain and permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The Warn hoist winch is compact and comes standard with a steel mounting plate and hardware to make installation quick.
Warn Industrial winches and hoisting winches are sold as ”winch only”. This means that you choose the solenoid pack, steel cable, roller window and remote control when you buy. To make it as easy as possible for you, we have listed all options below. If you have different wishes, please contact us.
| Specifications | DC 800 | DC 1000 | DC 1000 (short drum) |
|---|---|---|---|
| Part number | Warn 104801 | Warn 105101 | Warn 105151 |
| Rated line pull | 363kg | 454kg | 454kg |
| Motor | 12V DC | 12V DC | 12V DC |
| Gear | 3-Stage planetary | 3-Stage planetary | 3-Stage planetary |
| Brake | Spring applied, load holding | Spring applied, load holding | Spring applied, load holding |
| Measurements LxWxH | 335.5mm x 118.9mm x 120.5mm | 378.7mm x 118.9mm x 120.5mm | 338.3mm x 120.2mm x 120.5mm |
| Bolt pattern LxW | 123.7mm x 76.2mm | 167.6mm x 76.2mm | 123.7mm x 76.2mm |
| Weight (winch only) | 10kg | 11kg | 9kg |
| Line speed No load/load | 5.3MPM / 4.1MPM | 5.1MPM / 7.7MPM | 4.7MPM / 3.5MPM |
| Amps No load/load | 18.6AMP / 57.6AMP | 23.5AMP / 78.1AMP | 23.4AMP / 77.9AMP |
| Not included | DC 800 | DC 1000 | DC 1000 (short drum) |
|---|---|---|---|
| Control pack | Controle box with solenoid 12V (Warn 105646) | Controle box with solenoid 12V (Warn 105646) | Controle box with solenoid 12V (Warn 105646) |
| Remote | Standard remote with cable (Warn 88528) Remote with cable and emergency stop (Warn 63680) |
Standard remote with cable (Warn 88528) Remote with cable and emergency stop (Warn 63680) |
Standard remote with cable (Warn 88528) Remote with cable and emergency stop (Warn 63680) |
| Wire cable | ø4.8mm x 15.2m (Warn 60076) | ø5.6mm x 15.2m (Warn 68851) | ø5.6mm x 7.6m (Warn ) |
| Fairlead | Roller ⊗123.7mm (Warn 28929) | Roller ⊗167.6mm (Warn 29256) | Roller ⊗123.7mm (Warn 28929) |
| Specifications |
| Part number |
| Warn 105151 |
| Rated line pul |
| 454kg |
| Motor |
| 12V DC |
| Gear |
| 3-Stage planetary |
| Brake |
| Spring applied, load holding |
| Measurements LxWxH |
| 338.3mm x 120.2mm x 120.5mm |
| Bolt pattern LxW |
| 123.7mm x 76.2mm |
| Weight (winch only) |
| 9kg |
| Line speed No load/load |
| 54.7MPM / 3.5MPM |
| Amps No load/load |
| 23.5AMP / 77.9AMP |
| Not included |
| Control pack |
| Controle box with solenoid 12V (Warn 105646) |
| Remote |
| Standard remote with cable (Warn 88528) |
| Remote with cable and emergency stop (Warn 63680) |
| Wire cable |
| ø5.6mm x 17.6m |
| Roller Fairlead |
| ⊗123.7mm (Warn 28929) |
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 60 × 40 × 40 cm |
