Description

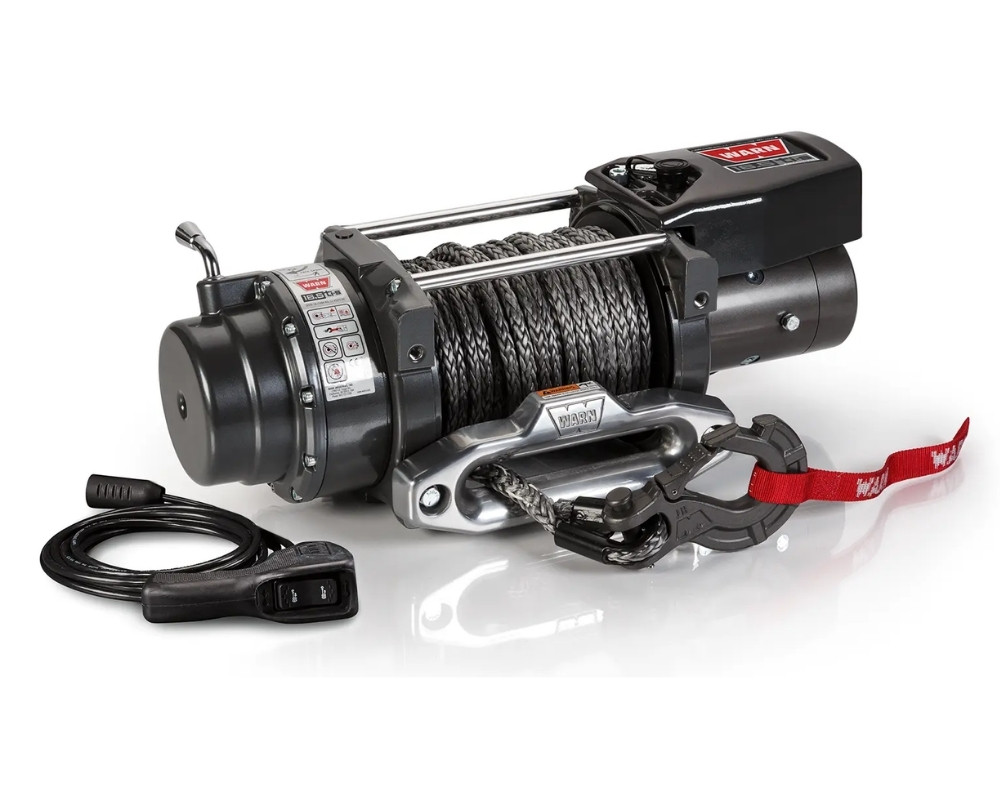

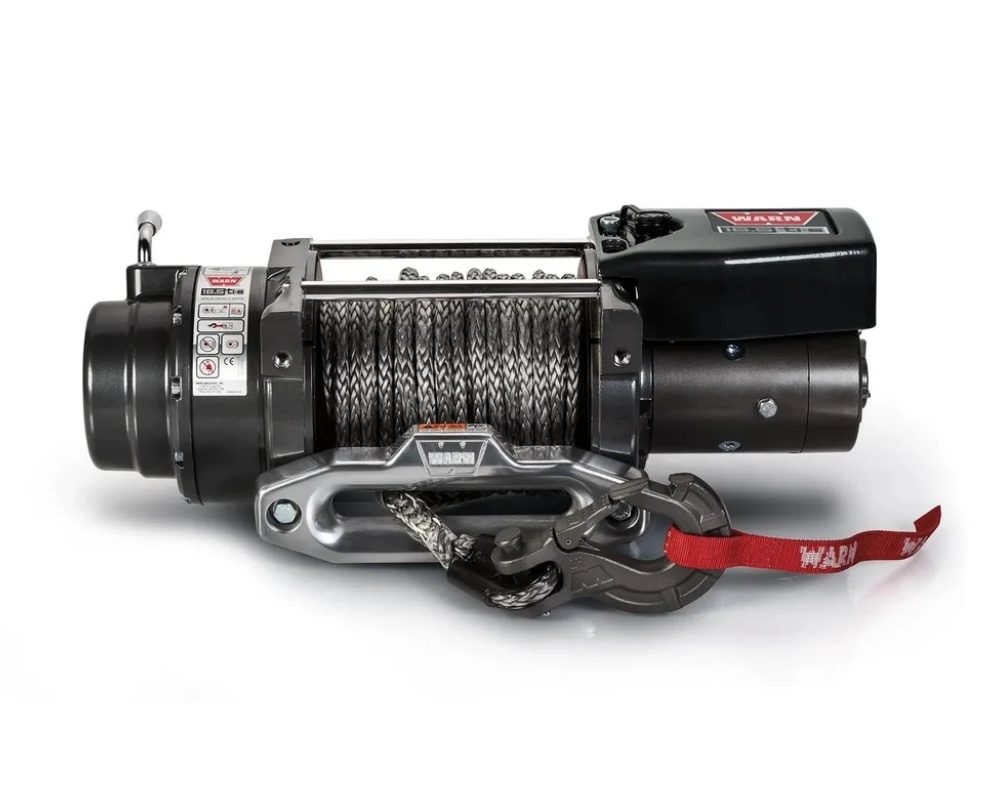

Warn winch 16.5Ti
The 16.5TI features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability, and reliability that the Warn TI Series of Winches are known for. The new, more efficient design delivers faster line speeds and lower ampere draw.
| Specifications | 16.5Ti-S |
|---|---|
| Part number | Warn 97740 |
| Rated Line pull | 7484kg |
| Motor | 12V DC |
| Gear | 3-Stage planetary |
| Brake | Automatic |
| Remote | Wired 3.7m (wireless optional) |
| Synthetic rope | ø9.5mm x 24.3m / Spydura pro |
| Fairlead | Hawse fairlead (⊗254mm) |
| Measurements LxWxH | 615.4mm x 152.4mm x 248.8mm |
| Bolt pattern LxW | 254mm x 114.3mm |
| Weight | 48kg |
| Line speed No load/load | 7.2MPM / 0.99MPM |
| Amps No load/load | 68AMP / 507AMP |
| Specifications |
| Part number |
| Warn 97740 |
| Rated line pull |
| 7484kg |
| Motor |
| 12v DC |
| Gear |
| 3-Fase planetair |
| Brake |
| Automatic |
| Remote |
| Wired 3.7m (wireless optional) |
| Synthetic rope |
| ø9.5mm x 24.3m / Spydura pro |
| Fairlead |
| Hawse fairlead (⊗254mm) |
| Measurements LxWxH |
| 615.4mm x 152.4mm x 248.8mm |
| Bolt pattern LxW |
| 254mm x 114.3mm |
| Weight |
| 48kg |
| Line speed No load/load |
| 7.262MPM / 0.99MPM |
| Amps No load/load |
| 68AMP / 507AMP |
