Description

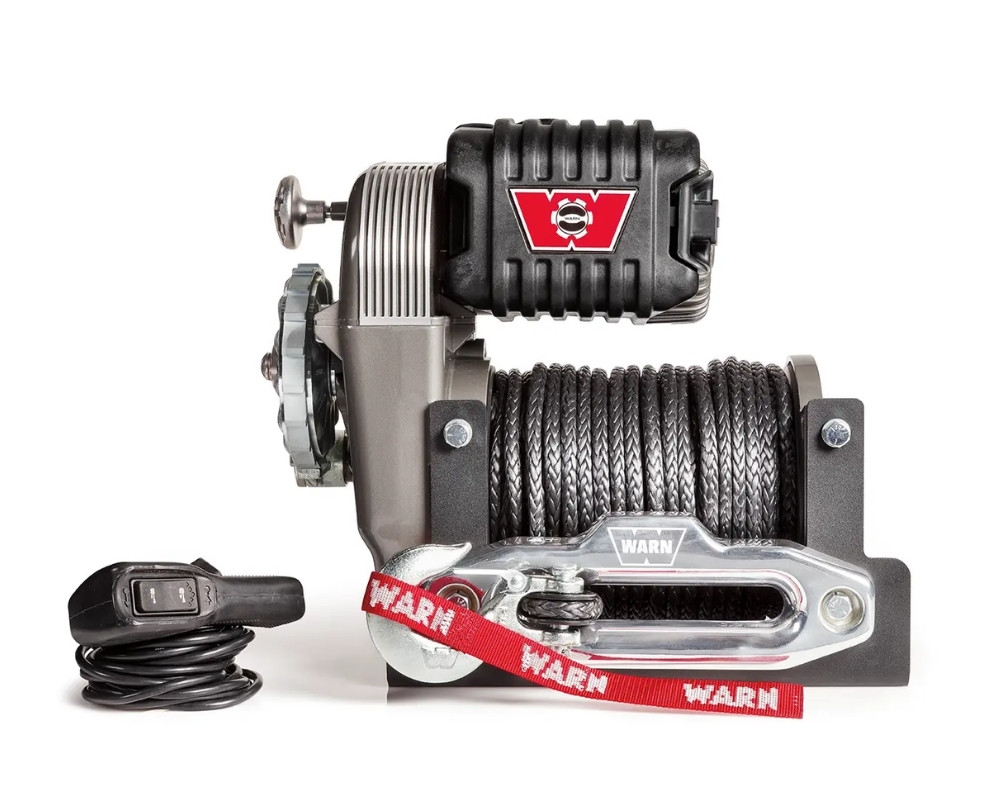

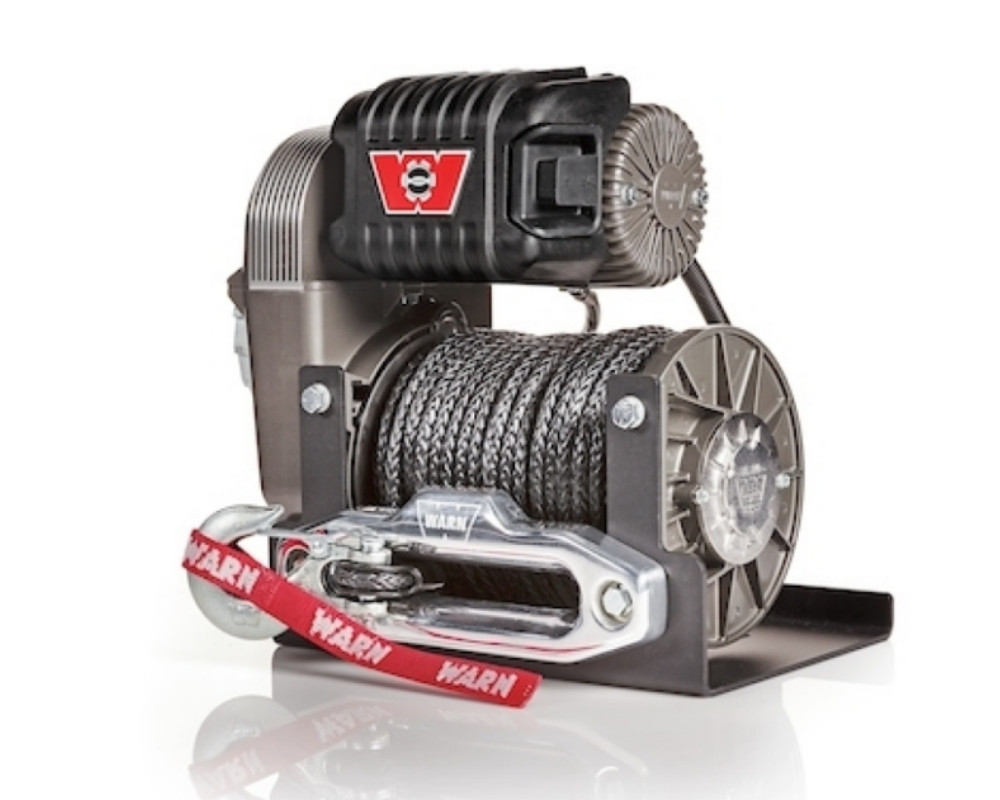

Warn winch M8274
Warn Industries’ most iconic winch—is evolving. Often used as Offroad winch. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with an IP68 rating and a reliable Albright solenoid.
| Specifications | M8274 |
|---|---|
| Part number | Warn 106175 |
| Rated line pull | 4536kg |
| Motor | 12V / 24V DC |
| Gear | 3-Stage planetary |
| Brake | Automatic disc brake |
| Remote | Wired 3,7m (wireless optional) |
| Synthetic rope | ø9.5mm x 45m / Spydura |
| Fairlead | Hawse fairlead (ø254mm) |
| Measurements LxWxH | 427,2mm x 220mm x 381mm |
| Bolt pattern LxW | 254mm x 114.3mm |
| Weight | 38kg |
| Line speed No load/load | 24.4MPM / 1.9MPM |
| Amps No load/load | 61AMP / 691AMP |
| Specifications |
| Part number |
| Warn 106175 |
| Rated line pull |
| 4536kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage planetary |
| Brake |
| Automatic disc brake |
| Remote |
| Wired 3,7m (wireless optional) |
| Synthetic rope |
| ø9.5mm x 45m / Spydura |
| Fairlead |
| Hawse fairlead (ø254mm) |
| Measurements LxWxH |
| 427,2mm x 220mm x 381mm |
| Bolt pattern LxW |
| 254mm x 114.3mm |
| Weight |
| 38kg |
| Line speed No load/load |
| 24.4MPM / 1.9MPM |
| Amps No load/load |
| 61AMP / 691AMP |
| Specification sheet |
