Description

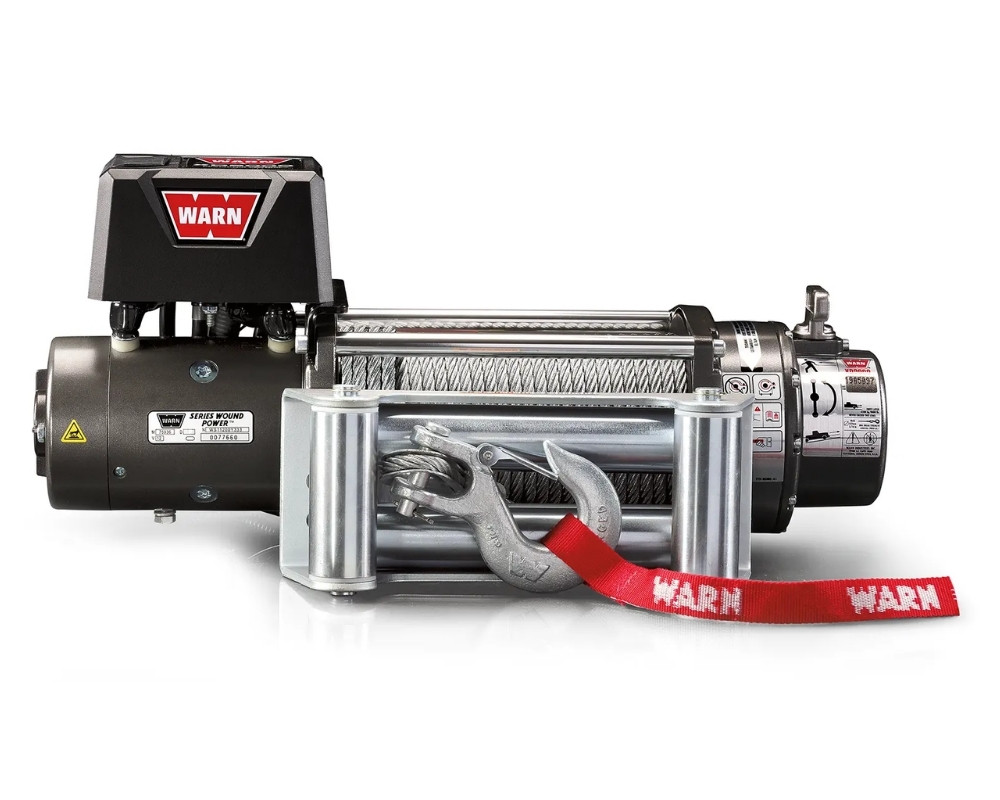

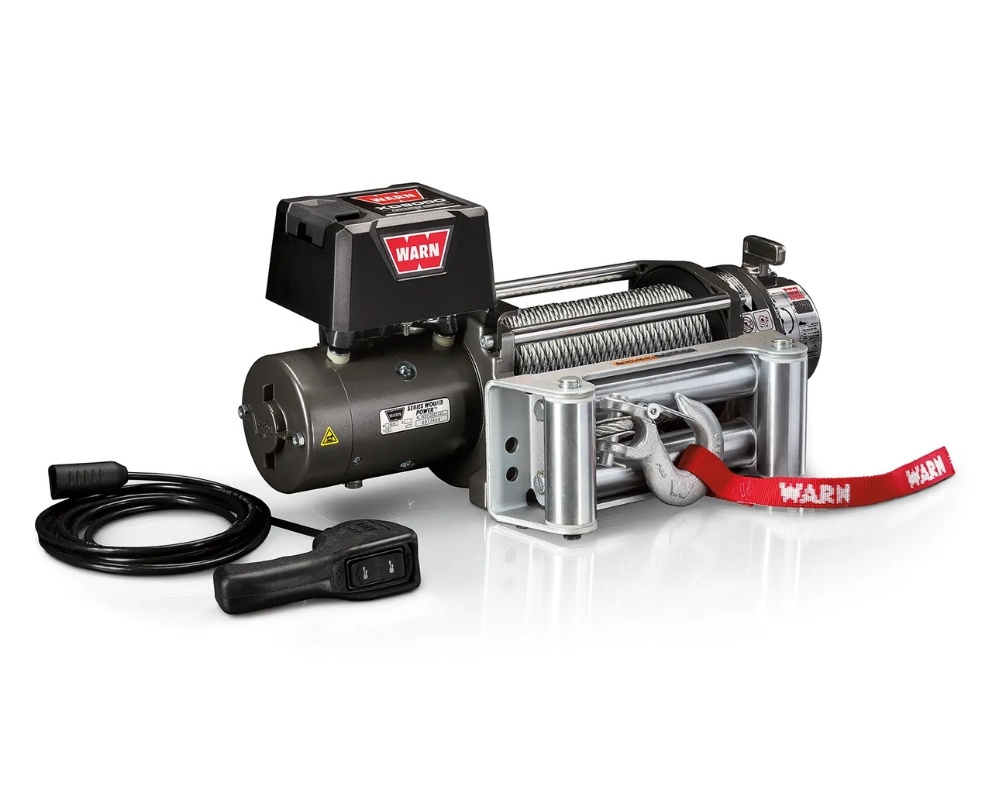

Warn winch XD9
Not only fast but reliable, solid and efficient. With its old school look and gray powder coat finish, this Warn winch is great to look at. In addition, the solenoid box of Warn XD9000 is easy to move.
| Specifications | XD9 |
|---|---|
| Part number | Warn 88500 |
| Rated line pull | 4080kg |
| Motor | 12V DC |
| Gear | 3-Stage planetary |
| Brake | Conic |
| Remote | Wired 3.7m (wireless optional) |
| Wire cable | ø8mm x 30m |
| Fairlead | Roller fairlead (⊗254mm) |
| Measurements LxWxH | 555mm x 160mm x 193.3mm |
| Bolt pattern LxB | 254mm x 114.3mm |
| Weight | 38kg |
| Line speed Load/no load | 11.58MPM / 1.19MPM |
| Amps Load/no load | 56AMP / 478AMP |
| Specifications |
| Part number |
| Warn 88500 |
| Rated line pull |
| 4080kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage planetary |
| Brake |
| Conic |
| Remote |
| Wired 3.7m (wireless optional) |
| Wire cable |
| ø8mm x 30m |
| Fairlead |
| Roller fairlead (⊗254mm) |
| Measurements LxWxH |
| 555mm x 160mm x 193.3mm |
| Bolt pattern LxB |
| 254mm x 114.3mm |
| Weight |
| 38kg |
| Line speed Load/no load |
| 11.58MPM / 1.19MPM |
| Amps Load/no load |
| 56AMP / 478AMP |
