Description

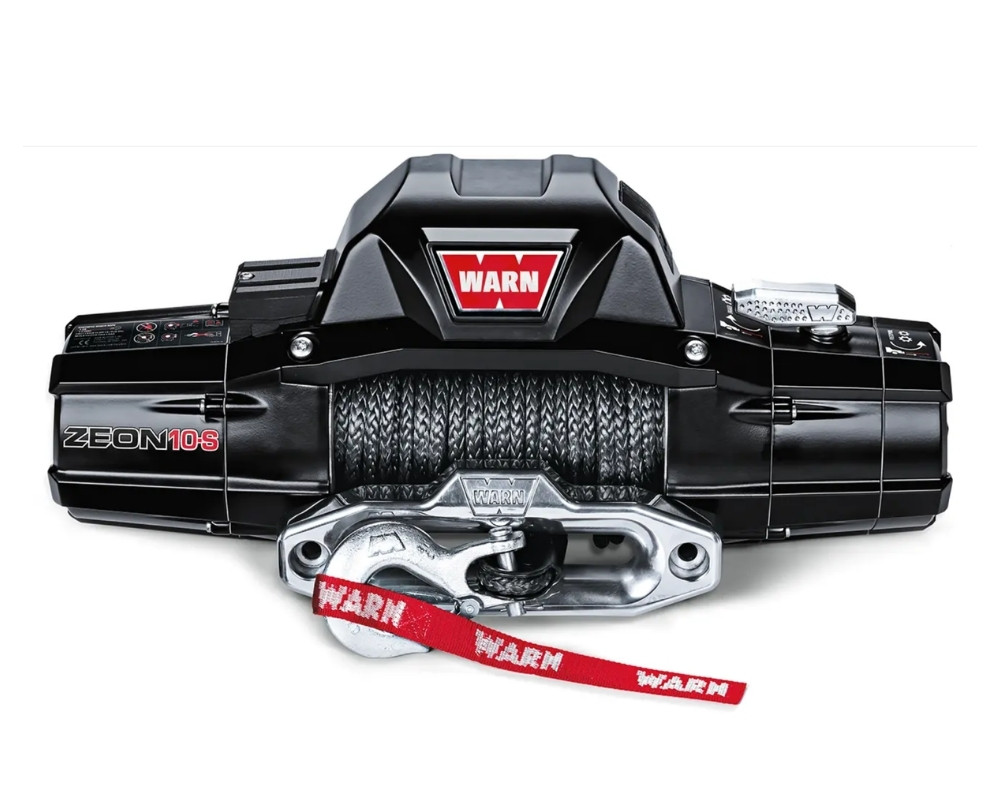

Warn ZEON 10 – Synthetic rope
“Though enough to tackle anything you will”
The ZEON is great for trucks and SUVs, Jeeps and trailers. It offers premium components and performance that continues to be the go-to winch for off-roaders worldwide. These premium winches offer IP68 waterproofing, efficient electrical systems, powerful motors, and fast lines speed among a host of other word-class features.
| Specifications | ZEON 8-S | ZEON 10-S |
|---|---|---|
| Part number | Warn 89670 | Warn 89680 |
| Rated line pull | 3630kg | 4536kg |
| Motor | 12V DC | 12V DC |
| Gear | 3-Stage planetary | 3-Stage planetary |
| Brake | Conical | Conical |
| Remote Control | Wired 3.7m (wireless optional) | Wired 3.7m (wireless optional) |
| Synthetic rope | ø9.5mm x 30.5m | ø9.5mm x 30.5m |
| Fairlead | Hawse (ø254mm) | Hawse (ø254mm) |
| Measurements LxWxH | 615.9mm x 182mm x 266.8mm | 615.9mm x 182mm x 266.8mm |
| Bolt pattern LxW | 254mm x 114.3mm | 254mm x 114.3mm |
| Weight | 34kg | 34kg |
| Line speed No load/load | 12.8MPM / 1.9MPM | 10.3MPM / 1.5MPM |
| Amps No load/load | 64AMP / 413AMP | 62AMP / 409AMP |
| Specifications |
| Part number |
| Warn 89680 |
| Rated line pull |
| 4536kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stag planetary |
| Brake |
| Conical |
| Remote Control |
| Wires 3.7m (wireless optional) |
| Synthetic rope |
| ø9.5mm x 30.5m |
| Fairlead |
| Hawse (ø254mm) |
| Measurements LxWxH |
| 615.9mm x 182mm x 266.8mm |
| Bolt pattern LxW |
| 254mm x 14.3mm |
| Weight |
| 34kg |
| Line speed No load/load |
| 10.3MPM / 1.5MPM |
| Amps No load/load |
| 62AMP / 409AMP |
